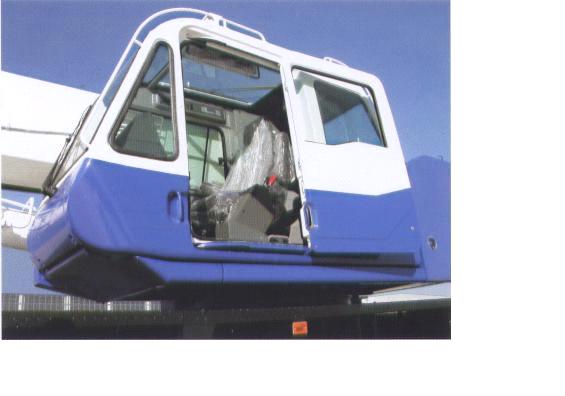

TADANO GT550E

Inquiry Now

Specifications

Crane capacity	55,000kg at 3.0m
Max traveling speed	72km/h
Grade ability(TANθ)	30%
Mass gross vehicle mass —front axle —rear axle	41,600kg 15,970kg 25,630kg
Min. turning radius	11.9m(at center of extreme outer tire)
Boom Fully retracted length Fully extended length lifting height extension speed elevation speed	5-section full length power telescoping boom 11.1m 42.0m 41.5／56m(boom/jib) 123s -2º-80ºin 68s
Jib length	Triple offset (5 º/25 º/45 º) type. Stored under base boom section. 8.8m and 15.2m
Hoist —main winch Single line pull Single line speed Wire rope	Variable speed with grooved drum driven by hydraulic axle piston motor through speed reducer. 42.2KN(4,300kgf) 143m/min(at the 4th layer) Spin-resistant type,19.05mm×227m
Hoist —auxiliary winch Single line pull Single line speed Wire rope	Variable speed with grooved drum driven by hydraulic axle piston motor through speed reducer. 44.1KN(4,500kgf) 123m/min(at the 2th layer) Spin-resistant type,19.05mm×127m
Swing Rear swing radius	1.9r／min 3.65m
Hydraulic system	Pumps------ Quadruple gear pumps driven by carrier engine through P.T.O. Control valves-----multiple valves actuated by pilot pressure integral pressure relieve valve. Circuit----equipped with air cooled type oil cooler. Hydraulic oil tank capacity-------approx.690L Filters-----return line filter
TADANO automatic moment limiter	Main unit in crane cab gives audible and visual warning of approach to overload. Automatically cuts out crane motions before overload. Digital liquid crystal display: ·either boom angle or moment% ·either boom length or potential hook height ·actual load radius or swing angle ·actual hook load ·permissible load ·either jib offset angle or number of parts line of rope ·outrigger position indicator Bar graphical display: ·Either moment as percentage or main hydraulic pressure. ·boom position indicator
Outrigger Extended width	Hydraulic operated H-type outriggers． Each outrigger controlled simultaneously or independently from either side of carrier. Equipped with level gauge. Float mounted integrally with the jack retractor to within vehicle width. All cylinders are fitted with pilot check valves. Crane operation with different extended length of each outrigger. Equipped with extension width detector for each outrigger. Fully6.8m, middle4.6m, minimum2.39m Float size(diameter)-----400mm
Front jack	A fifth hydraulically operated outrigger jack. Mounted to the front frame of carrier to permit 360 º lifting capacities. Equipped with front jack extension detector. Float size(diameter)-----350mm
Carrier	FAW, CA5425JQZ,left hand steering, 8×4
Engine	Manufacturer---- HANGZHOU ENGINE CO., LTD . Model---WD615.338 Type-----4 cycle,turbo charged,6 cylinder in line, direct injection, water cooled diesel engine. Piston displacement---11,967cm³ Bore×stroke----133×150mm Max. output----276KW(350ps)/2,200r/min Max. torque----1,500N.m/1,500r／min
