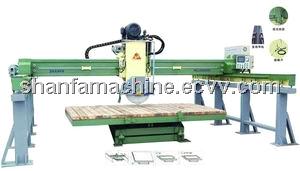

stone machine of infrared bridge type automatic cutting machine with 4-column
| FOB Price: | 18,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | in the 15days |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Specifications
Application:
It adopts PLC control and automatic positioning techniques for various moves of the cutter frame & linear rolling guide driving,magnetic ruling,laser device setting.It is consists of high quality steel.The platform can be 360degree rotatable and automatically trun slate up.It can cut sizeable slabs with high precision and efficiency.
Technical parameters:
1·max.blade of diameter φ400-600mm
2·max.stroke for transverse 3800 mm
3·max.stroke for longitudinal 3800mm
4.elevation stoke for main shaft of blade 330 mm
4·max.titling degree for work-bench 87°
5·max.rotation degree for work-bench 360°
6.location degree for work-bench 0°- 45°- 90°
6·power of main motor 15kw
7·total power of machine 20 kw
8·water consumption 2m3/h
9.water pressure >0.2 Mpa
10.overall size for machine 4800×5816×2350 mm
11·total weight for machine 5800 kg
