Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

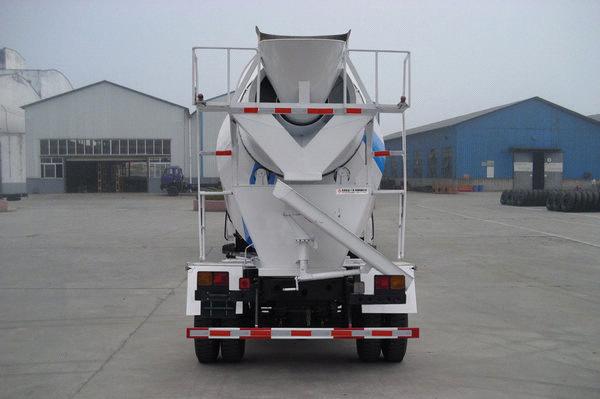

DONGFENG 3 Axles Cement Truck
| FOB Price: | 45,000.00 - 70,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | bulk or roro ship |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waxed, etc. |
Specifications
DONGFENG 3 Axles Cement Truck
1,Stirring volume:10-12cbm
2,Steady and reliable slew, quick discharging
3,Low residue rate
| CHASSIS | Brand | Dongfeng | |
| Chassis Model (Model No.) | EQ1250GFJ3 | ||
| Drive Mode | 6*4 | ||
| Tire | 10.00-20,11.00-20 | ||
| Brake | Air brake | ||
| Engine | Model | YC6M290-33 | |
| Horsepower (Hp) | 290 | ||
| Dispalcement(ml)/Power(kw) | 9839/215 | ||
| Emission | Euro III | ||
| Main Parameter |
Overall dimension (MM) |
L*W*H(mm) | 8700,9550*2500*3760,3880 |
| wheelbase(mm) | 3850+1300,4150+1300 | ||
| Axles No. | 3 | ||
|
Weight (KG) |
Gross weight | 24900 | |
| Payload weight | 11805 | ||
| Kerb weight | 12900 | ||
| Leaf spring No. | 9/10 | ||
| Approaching/Deparature Angle(°) | 34/15,34/13 | ||
| Front/Rear Trace(mm) | 1980/1860,1860 | ||
| Front/Rear Suspension(mm) | 1250/2300,1250/2850 | ||
| Max speed(km/h) | 85 | ||
| Gear Box | 9 speed gearbox | ||
| Hydraulic Drive Parameters | Stirring Volume(M3) | 10-12 | |
| Filling Rate(%) | 63% | ||
| Rate of Feeding(M3/min) | ≥3 | ||
| Rate of Delivery(M3/min) | ≥2.0 | ||
| The Remaining Rate(M3/min) | ≤1.0 | ||
| Tube Service Speed(r/min) | 0-12 | ||
| Tube Dip(°) | 11-15 | ||
| Oil Pump | Import from Italy | ||
| Hydraulic Motors | |||
| Decelerator | |||
If you are interested in our trucks, please feel free to contact Ms Jessie Jin!
