Low Price & High Efficiency Led Tunnel Light 200W 3years wattanty

Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	1-7days
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	one pcs in one box

Quick Details

Item Type: Tunnel Lights
Model Number: HM-LTL2*100W
Brand Name: HaMi
Certification: CE,RoHS
IP Rating: IP65
Lamp Body Material: Aluminum Alloy
Working Lifetime(Hour): 50000
Color Temperature(CCT): Cool White
CRI (Ra>): 80
Lamp Luminous Efficiency(lm/w): 90
Lamp Luminous Flux(lm): 18000
Lamp Power(W): 200
Input Voltage(V): 85-265
Brand Name: HaMi
Model Number: HM-LTL2*100W

Specifications

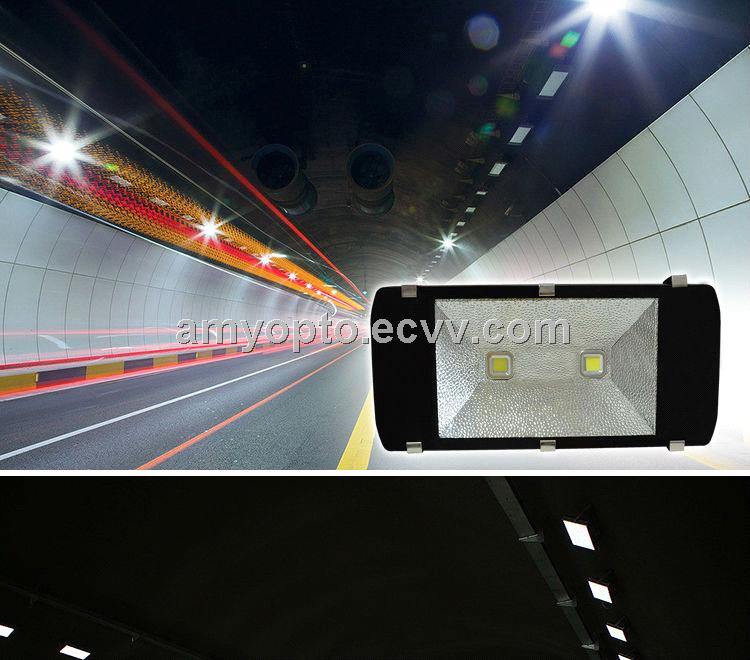

Name:200W LED Tunnel Light

Model:HM-LTL2*100W

1. led tunnel light,tunnel light,

2. Power: 200w led tunnel light,

3. Power optional:120w,160w,200W,

4. Die-casting aluminum casing and High intensity toughened glass cover

Model Number	HM-LTL2*100W
LED Consumption	185W
System Consumption	212W
LED Initial Flux	WW	PW	CW
	12000 Lm	13000 Lm	12050 Lm
Light Body & Shade Material	Die-casting aluminum casing + toughened glass cover
Power Factor	>0.95
Total Harmonic Distortion	<9%
Power Efficiency	>87%
Lighting Efficiency	>85%
Installation Height	(Height) 6M	(Height) 8M	(Height) 10M
Average Illuminance	>62 lux	>36 lux	>23 lux
Illuminance Area	10 x 10 m	14 x 14 m	17 x 17 m
Illuminance Uniformity	>0.6
Color Rendering Index	WW		CW
	Ra >68	Ra >75	Ra >75
Beam Angle	120°
Working Voltage	DC 30 ~ 36V
Input Voltage	AC 85 ~ 265V
Frequency	50 ~ 60 Hz
LED Junction Temperature	≤80 oC
Working Temperature	-40 oC ~ +55 oC
IP Grade	IP 65
LED Working Life-Span	>50000H
Certificate	CE , Rohs
Product Size	L600 x W280 x D120 mm
Net Weight / Gross Weight	6.00 kg / 6.50 kg

Features:

1. Energy-saving with high efficency LED making, environment friendly and long lifespan upto 50000 hours;

2. Special reflector made from die cast aluminum for the best light diffusing;

3. Antisepticise closed silicone ring for light dustproof and waterproof;

4. Both AC and DC voltage are available;

5. Luminous flux ≥ 2 times of HPS.

Application:

Tunnel, Football field, Stage, Buildings, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Workshop,Warehouse, Shopping Mall, Exhibition Hall, Gas Station, Highway, Toll Station, Dock etc.

Notice:

1. Don't use in the place corrosive, flammable or explosive

2. Not install in the place near heat.

3. When the lamp lights, don't envisage it.
