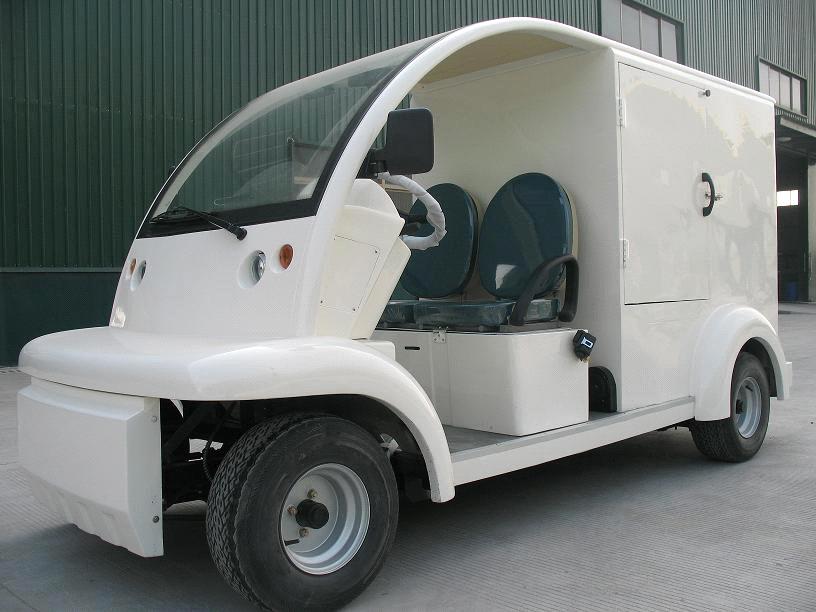

CE approved electric dinner cart

Inquiry Now

Related products from verified members

Heavy Duty Truck HOWO 8X4 6X4 Dump Truck, Fence...

Price:21290.00-21320.00 USD/Unit

Min. Order:1 Unit
Light Truck

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Model	EG6062KXC	EG6062KXC01	EG6062KXC02	EG6062KXC03	EG6062KXC04	EG6062KXC05
System	48V/4KW Series	48V/4KW Sepex	48V/5KW Sepex	48V/4KW AC system	48V/5.3KW Sepex	48V/5KW AC System
Unit Price (FOB Shanghai)(Based on FCL) Rear box in STS material
Unit Price (FOB Shanghai)(Based on FCL) Rear box in FRP material (without insulating function)	US$6,785.00	US$6,945.00	US$7,405.00	US$7,655.00	US$7,085.00	US$7,730.00
Unit Price (FOB Shanghai)(Based on FCL) Rear box in FRP material (with insulating function)	US$6,900.00	US$7,060.00	US$7,502.00	US$7,770.00	US$7,200.00	US$7,845.00
Key Components
Battery	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)
Motor	3.8KW Chinese motor	3.8KW Chinese motor	DV9 ADC motor	4KW Chinese motor	5.3KW Chinese Motor	5KW Chinese Motor
Controller	Curtis 1204 (275A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268(400A@2minutes)	Curtis 1236 (350A@2minutes)	Curtis 1268 (400A@2minutes	Curtis 1236 (350A@2minutes
Performance
Passenger capacity	2	2	2	2	2	2
Range (loaded) based on flat road at a speed of 20km/h (km)^＊	>70	>70	>70	>90	>70	>90
Max. speed @12.49:1 gear ratio	32	32	28	40	32	40
Max. speed @10.25:1 gear ratio	/	40	32	--	40	--
Minimum turning radius (m)	4	4	4	4	4	4
Max. climbing ability (loaded) @ 12.49:1 gear ratio	20%	20%	25%	20%	20%	20%
Max. climbing ability (loaded) @ 10.25:1 gear ratio	15%	15%	18%	--	15%	--
Max. movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m
Max. loading weight	480kgs	480kgs	480kgs	480kgs	480kgs	480kgs
Net weight	N/A	N/A	N/A	N/A	N/A	N/A
Dimensions
Overall dimensions (mm)	3750X1400X1810
Rear cargo bed dimension(mm)	1500X1080X990
Min. ground clearance (mm)	140
Wheelbase (mm)	2450
Front wheel tread (mm)	1160
Rear wheel tread (mm)	1150
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
Frame	Welded steel framework with sand blasting+paint treatment
Body	Fibreglass
Roof	Fibreglass+steel frame
Windshield	Laminated glass
3point seat belt	2pcs
Large Seats:
1) backrest and cushion	Sponge + artificial leather
2) armrest	Soft expanded plastic
Floor	Bamboo + artificial leather
Inner rear view mirror	One piece per cart in the middle of the windshield
Side rear view mirror	Two pieces per cart
Rain cover	PVC
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Dashboard	forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items
Audio System	Radio and MP3 receiver
Audio System	CD player to replace MP3 receiver
Microphone	Wired
Speaker	2pcs
Reversing alarm	\
Switch assembly	Lights switch, horn switch, wiper switch
Wiper	12V
Solar panel	48V/125W
Charger	China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Charger	On-board charger, input 85V~265V, 45~65Hz, output 48V/18A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Four wheel hydraulic drum brake+foot parking brake
Accelerator	Stepless speed change
Front suspension	Independent suspension, helix spring + shock absorber
Rear suspension	rear plate spring + shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
Rear axle	Integrated, Gear ratio10.25:1
Wheel & Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
Wheel & Tyre	10X6 Aluminum Wheel
