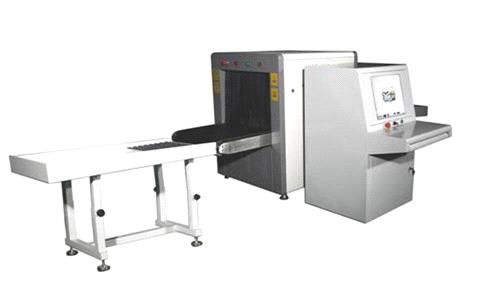

X-ray Security Inspection Detector Machine with Conveyor Speed of 0.2m/s and 24 Bits Real Colors
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Supports multi-terminal, safety ray and automatic estimate function
Functions:<ul>
Alarm by sounds and light when conform to condition
Network interface could be connect local area network
Supports multi-terminal check baggage at same times
Safety ray transmit under automatic control and avoids miss
Simple operation by mouse without keyboard and work table
Controlled by mouse and save space
Turn-off by key control turn-off machine only need one step revolves key
Automatic security close-down, does not need complex many steps and simple
Eagle-eye could is expediently observing enlargement area
Estimate malfunction by self automatic estimate and prompt message, helpful for maintenance
Specification:<ul>
Tunnel size: 650W x 500Hmm
Conveyor speed: 0.2m/s
Conveyor maximum load: 50kg
Single inspection dosage: <1.5µGY
Wire resolution: 0.1mm metal line
Steel penetration: 30mm armor plate
Maximum leakage radiation: <0.05µGY/H</ul>
X-ray generator:<ul>
Orientation: vertically upward
Tube current: 0.4 to 0.7mA adjustable
Anode voltage: 100 to 160kV adjustable
Angle: 60°
Generator cooling/working periods: sealed oil bath with forced air/100%</ul>
Image performance system:<ul>
X-ray sensor: one type photo-diode array detector with 12 bits
Monitor: high resolution 17-inch color LCD display
Color quality: 24 bits real colors
Edge enhancement: object contour is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
Low penetrate strength display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly</ul>
