GGD low voltage switchgear cabinet
| FOB Price: | 1,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 700 Set/Sets per Month |
| Shipping: | 30 WORKING DAYS |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | WOODENCASE |
Specifications

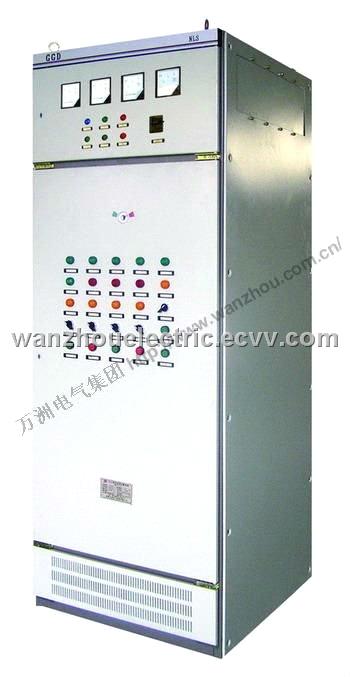

GGD LOW VOLTAGE SWITCHGEAR CABINET
Main function and application place:
applicable to power distribution system of AC 50Hz, with rated operation voltage of 380V, rated operation current to 3150A , in power users like generators, transformer substation, mining enterprises,etc
It 's used in power transformation, distribution, control of driving motor, illumination and power distribution equipment.
the arrangment to power distribution is economic
Performance characteristic
AC low voltage distribution cabinet adopt universal chamber body, with flexible installation
scheme, will not cause any problem if any change need after first installation .
frame made from 8MF cool-bend steel.
for effective heat emission purpose, there are various emission holes on botton/top side of cabinet .
several type of breaker for choice: ME,DW15, DZ20,cw1,cm1,F,M ETC
working condition:
|
type
|
rated voltage(V)
|
rated current(A)
|
rated short circuit drop out current(ka)
|
rated short time withstand curent(Is)(KA)
|
rated peak value withstand current(ka)
|
phase
|
|
GGD1
|
380
|
1000
|
15
|
15
|
30
|
a
|
|
GGD1
|
380
|
600(630)
|
15
|
15
|
30
|
b
|
|
GGD1
|
380
|
400
|
15
|
15
|
30
|
c
|
|
GGD2
|
380
|
1500(1600)
|
30
|
30
|
63
|
a
|
|
GGD2
|
380
|
1000
|
30
|
30
|
63
|
b
|
|
GGD2
|
380
|
|
30
|
30
|
63
|
c
|
|
GGD3
|
380
|
3150
|
50
|
50
|
105
|
a
|
|
GGD3
|
380
|
2500
|
50
|
50
|
105
|
b
|
|
GGD3
|
380
|
2000
|
50
|
50
|
105
|
c
|
|
|
|
|
|
|
|
|
