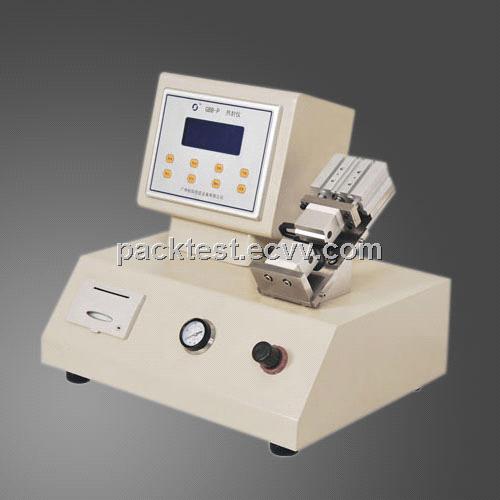

GBB-P Heating Seal Tester

Inquiry Now

Export Markets:	North America, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Function and usage

Heating-seal property is the most important property of the plastic packaging film.

GBB-P Heating-seal tester can measure the temperature range, intensity, suitable speed,

pressure and so on of the heat sealing of plastic film based material,

flexible packaging composite membrane, coating paper, aluminum foil and other kinds of heat-sealing compound precisely.

Features

Dual-temperature, dual control, dual display;

An external cylinder;

High-precision components imported brands configurations;

Elegant appearance;

From the test film sealing temperature, sealing speed, heat sealing strength has excellent performance description:

Specifications

Power : AC220V / 50HZ ;

Compressed air: 8kg/cm2

Heat sealing plane: 480mm×10mm slick (With silicon pad in lower seal stick);

Heat sealing temperature: room temperature ~200°C (Precision 1°C);

Heat sealing time: 0.01s~99.99h;

Heat-sealing pressure: 0~0.8Mpa.

Dimension: 450(L)mm×350(W)mm×420(H)mm

Weight: Desktop 21Kg;

Configuration

One host, one foot switch , one power line

Note: air supply for user-owned

Conforms to International standards
