Jinan Hongye CNC Machine Co., Ltd.
China Manufacturer with main products: CNC Machine, CNC Routers, CNC Engraving Machine, Woodworking Engraving Machine, Advertising Engraving Machine, Metal Engraving Machine, Mable... |
15th

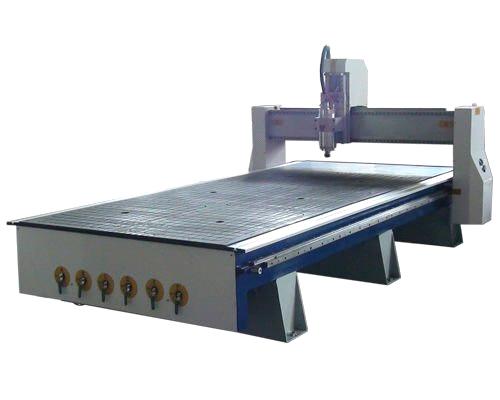

Woodworking CNC Router Machine (QL-M25)
| FOB Price: | 8,000.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | by sea or anyway you like |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Specifications
Woodworking CNC Router Machine (QL-M25)
2D,3D works for furniture,mould ,door,cabinet,decoration.
Details description about Woodworking CNC Router Machine (QL-M25):
1, imported straight square Guides, double-row ball slider 4, the loading capacity, a smooth operation, high accuracy and long life. Import high precision ball screw,high knife precision.
2, computer completely divorced from remote operation of USB interface DSP operating system, grip-type operation, operating more simple, more human design,unique intelligent budget rules, and give full play to electrical potential, high-speed processing, Qu Linear Synchronous , the perfect curve, not the computer memory and achieve cutting from the spindle automatic suspension.
3, software compatible with type3/Artcam/Castmate/Wentai,other CAD/CAM design software.
4, 6 vacuum adsorption surface area, can be effective against different sizes of plates adsorption. Vacuum pump can be selected imports of oil-free vacuum pump brands to solve cold weather, water cycle and water pump trouble for the issue.
5, high-speed drive stepper motor and drive, a double-Y-axis motor drive, the high-speed operation up to 35m/min empty row over the speed with cutting vigorously carved spindle speed can improve more.
Appliable Fields:
1. Woodworking: 3D wave plate, cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.
2, advertising: large advertising signs,acrylic brands,tablets,calligraphy,3D characters cut,garden or wall decoration,logo, acrylic cut, billboard, plate production,LED/neon channel, literal-hole cut, Lightbox mold, stamp
3, die industry: a sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, others: large-scale relief sculpture, video carving,craft and gift, widely used in process industries gifts.
Capacity:
|
1.
|
X.Y working area
|
1300*2500mm
|
|
2.
|
Z working area
|
200mm
|
|
3.
|
Table
|
1480*3000mm
|
|
4.
|
operating speed
|
>20m/min
|
|
5.
|
Clamping type
|
by suction
|
|
6.
|
Processor
|
DSP/ Speeds 100MHz
|
|
7.
|
Interface
|
USB
|
|
8.
|
Command
|
G code *.u00*.mmg*.plt
|
|
9.
|
Surroundings for software
|
DSP
|
|
10.
|
Power(exclude the spindle)
|
1840W
|
|
11.
|
Work voltage
|
AC 380V/50Hz
|
|
12.
|
Spindle power
|
4.5KW
|
|
13.
|
Spindle rotating speed
|
0-24000rpm/min
|
|
14.
|
Work Mode
|
Stepper
|
Guarantee&Aftersales Service:
(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)User-friendly English manual and video CD for machine using and maintaining
(4)Jinan Hongye CNC Machine Co.,Ltd provides free operation training service in Hongye factory.
As a professional manufacturer and exporter of cnc router,we'll try our best to serve you.
