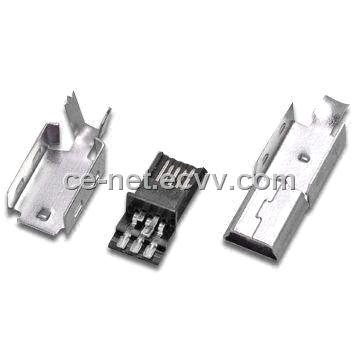

Mini USB 5P Male Soldering Type with 30V DC/AC Voltage Rating

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

multifunction usb flash drive full capacity

Price:5.00-8.00 USD/Piece

Min. Order:100 Pieces
Wooden USB Flash Driver

Price:2.00-20.00 USD/Piece

Min. Order:100 Pieces
U disk Silicone Shell

Price:

Min. Order:2000 Pieces
USB Flash Drive Pen

Price:

Min. Order:

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Key Specifications/Special Features:

Material:
- Housing: high temperature thermoplastics, UL 94V-0
- Contact: brass
- Shell: brass
Electrical:
- Current rating: 1.5A DC/AC
- Voltage rating: 30V DC/AC
- Contact resistance: 30 milliΩ maximum
- Dielectric withstanding voltage: 500V AC at sea level
- Insulation resistance: 1,000M ohms
- Operating temperature: -25 to +85oC
