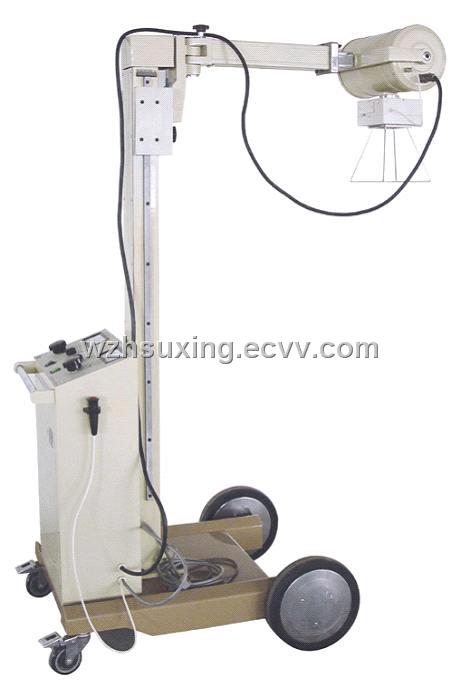

mobile 100mA x-ray machine with CE

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Specifications

100mA BEDSIDE X-RAY UNIT

GENERAL

Can be used in ward and emergency treatment room.

X-ray generator is combined.

Single focus, bridge rectification.

It is precise, safe, reliable and flexible.

A wireless remote control device (control range≥5 m) is used

MAIN TECHNICAL PARAMETER

X X-ray generator

Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.

Max rated capability

Current 15mA 30mA 60mA 100mA

Voltage 90kvp 90kvp 90kvp 80kvp

Time 6.3s 6.3s 4.0s 3.2s

Power supply

Voltage 180～240V

Frequency 50Hz

Power 7kVA(not lower than 7kVA)

Resistance 1Ω(not larger than 1Ω)

Voltage adjustment range of x-ray tube 50～90kVp

Range of the timer 0.08～6.3 s

Distance between the focus to the ground 700～1780 mm

X X-ray tube focus transverse rotation ±60°

Specification of X-ray tube XD4 2.9/100

Stationary anode, single focus

Transport dimension, Weight 123×90×204(cm),
(NET)190kg/ (GROSS)250kg
