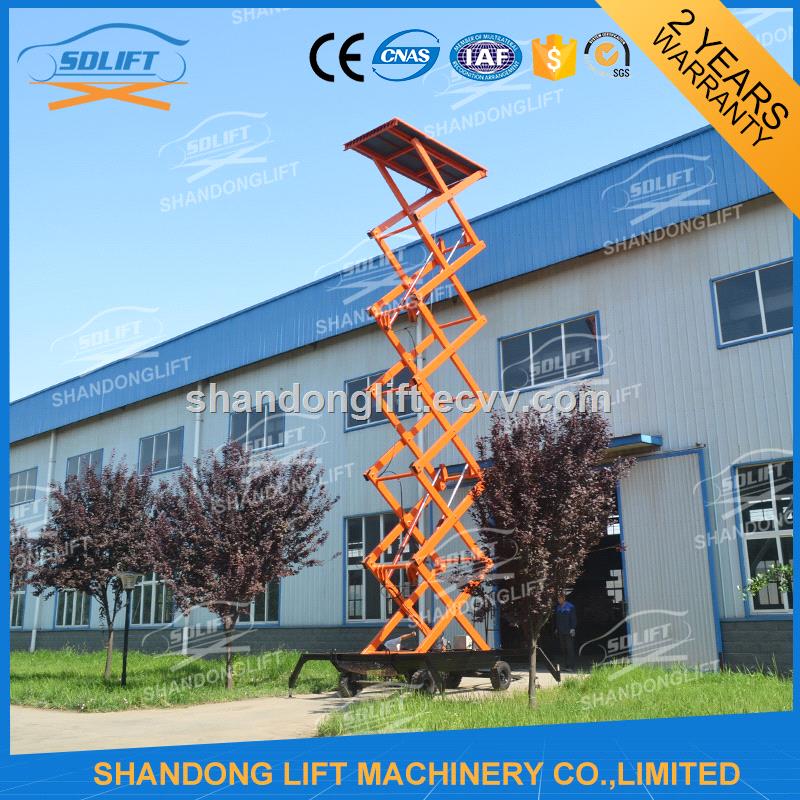

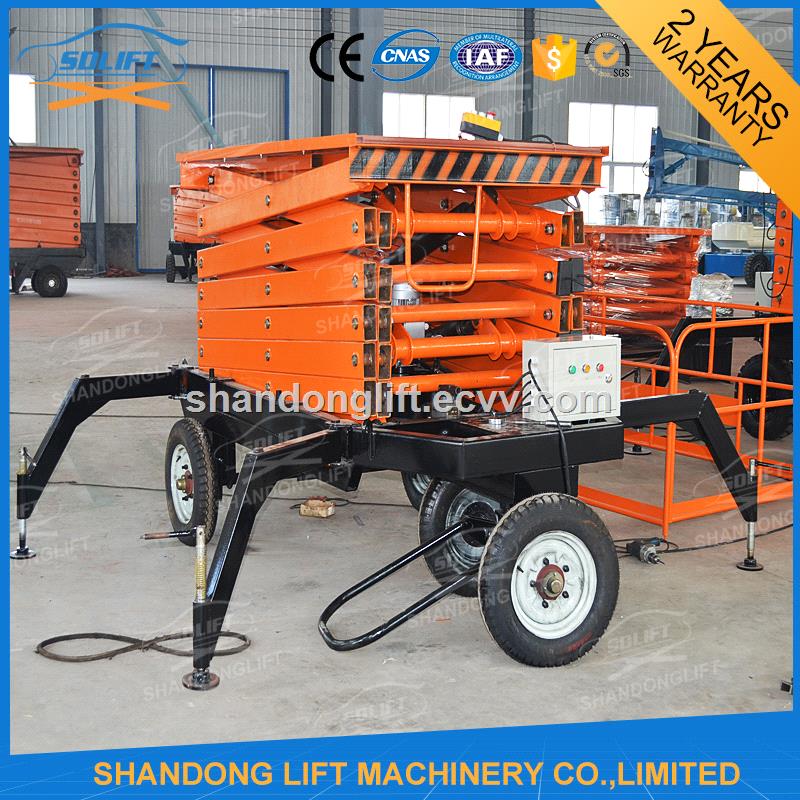

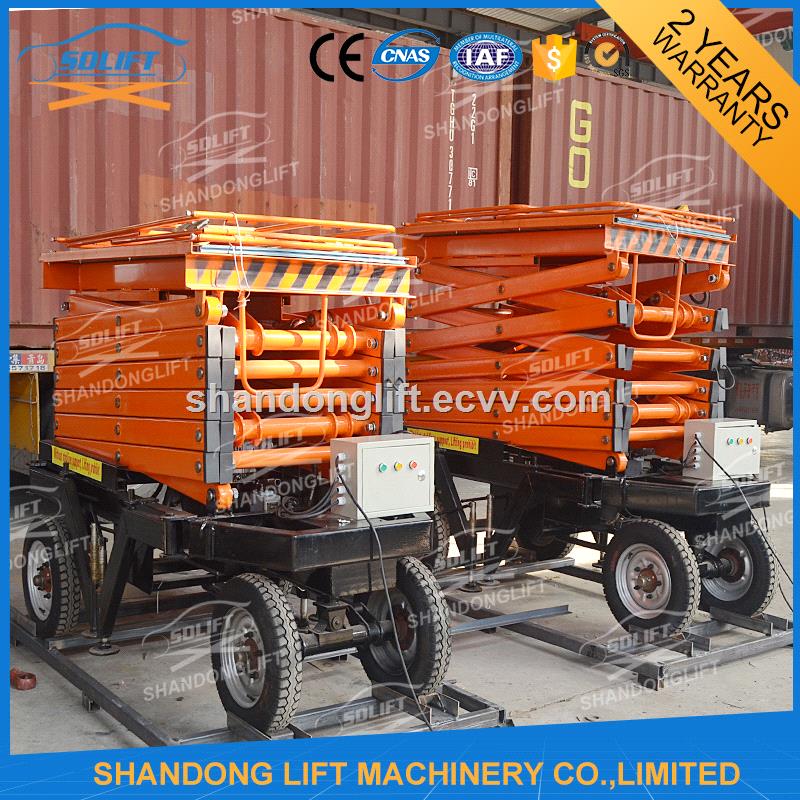

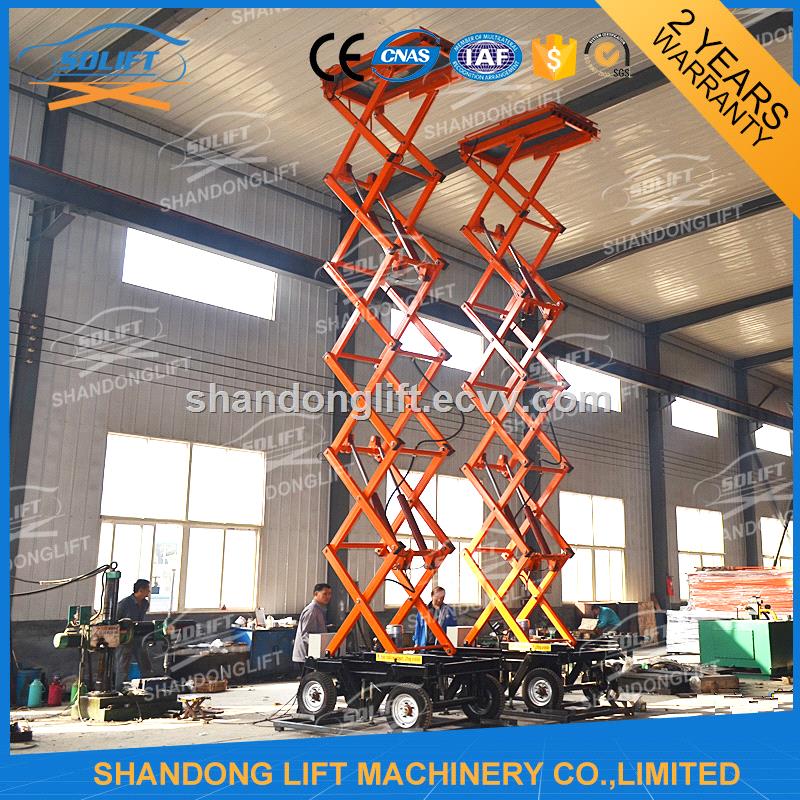

4 Wheels Mobile Motorized Electric Hydraulic Scissor Lift Table
| FOB Price: | 2,500.00 - 4,800.00 USD/Unit |
|---|---|
| Supply Ability: | 3,000 Unit(s) per Year |
| Shipping: | 10-15 days, Fob Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | solid iron case or anti-suffocating wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 24 Months
- Certification: CE, TUV, SGS, ISO9001
- Weight: 1500kg
- Overall Dimensions: 2700*1550*2380mm
- Table Size: 2100*1220mm
- Max. Lifting Height: 10000mm
- Min. Lifting Height: 500mm
- Rated Loading Capacity: 300kg
- Power: 220v, 380v or as clients requests
- Lift Drive / Actuation: Hydraulic
- Lift Mechanism: Scissor Lift
- Model Number: SJY0.3-10
- Brand Name: SDLIFT
- type: mobile with 4 wheel
- control system: electric
- power: hydraulic and electric
- safety device: explosion-proof lock valve
- lift system: hydraulic system
- platform: Anti-skid Checkered Plate
- mobile: 4 wheels
Specifications
4 wheels mobile motorized electric hydraulic scissor lift table
Application:
the scissor lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Product List:
Model |
Capacity |
Table size |
Max height |
Work height |
Total dimension |
Net weight |
SJY0.3-4 |
300Kgs |
1500×750mm |
4m |
5.7m |
1850×900×1900mm |
400Kgs |
SJY0.3-6 |
300Kgs |
1500×750mm |
6m |
7.7m |
1850×900×1970mm |
650Kgs |
SJY0.3-8 |
300Kgs |
1650×1000mm |
8m |
9.7m |
2100×1200×2460mm |
1200Kgs |
SJY0.5-8 |
500Kgs |
1980×1220mm |
8m |
9.7m |
2500×1550×2380mm |
1400Kgs |
SJY0.8-8 |
800Kgs |
2000×1220mm |
8m |
9.7m |
2600×1550×2640mm |
1700Kgs |
SJY0.3-10 |
300Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1500Kgs |
SJY0.5-10 |
500Kgs |
2100×1220mm |
10m |
11.7m |
2700×1550×2380mm |
1600Kgs |
SJY1.0-10 |
1000Kgs |
2220×1220mm |
10m |
11.7m |
2820×1720×2850mm |
2380Kgs |
SIY0.3-12 |
300Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2580Kgs |
SIY0.5-12 |
500Kgs |
2550×1500mm |
12m |
13.7m |
3150×1860×2850mm |
2780Kgs |
SJY1.0-12 |
1000Kgs |
2600×1500mm |
12m |
13.7m |
3200×2015×3090mm |
3580Kgs |
SJY0.3-14 |
300Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3000Kgs |
SJY0.5-14 |
500Kgs |
2990×1600mm |
14m |
15.7m |
3600×2000×2850mm |
3200Kgs |
SJY0.3-16 |
300Kgs |
3230×1600mm |
16m |
17.7m |
3700×2000×3030mm |
3900Kgs |
SJY0.3-18 |
300Kgs |
3230×1600mm |
18m |
19.7m |
3700×2000×3250mm |
4500Kgs |
SJY0.3-20 |
300Kgs |
3230×1600mm |
20m |
21.7m |
3700×2000×3450mm |
5100Kgs |
Parts Showing:
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) the safety rails to guarantee safety of the people above work platform.
3) the limit switch system helps the scissor lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the scissor lift are passed 1.2 times loading test before leaving factory.
the customers visiting:
the Certificates:
Our Services
1) We can design the customerized scissor lift as per your requirement.
2) the most suitable scissor lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
