DONGGUAN LIJI ELECTRONIC MATERIAL CO.,LTD
China Manufacturer with main products: FR-4 G10, carbon fiber sheet, Aluminum base copper clad laminate, Aluminum cu CCL, FR-4 Copper Clad Laminate, Epoxy glass cloth laminated... |
Home
>Products Catalog > FR-4 G10 > ESD & Antistatic & Semi-conductive Epoxy glass cloth laminated sheet (ESD G10 FR-4)

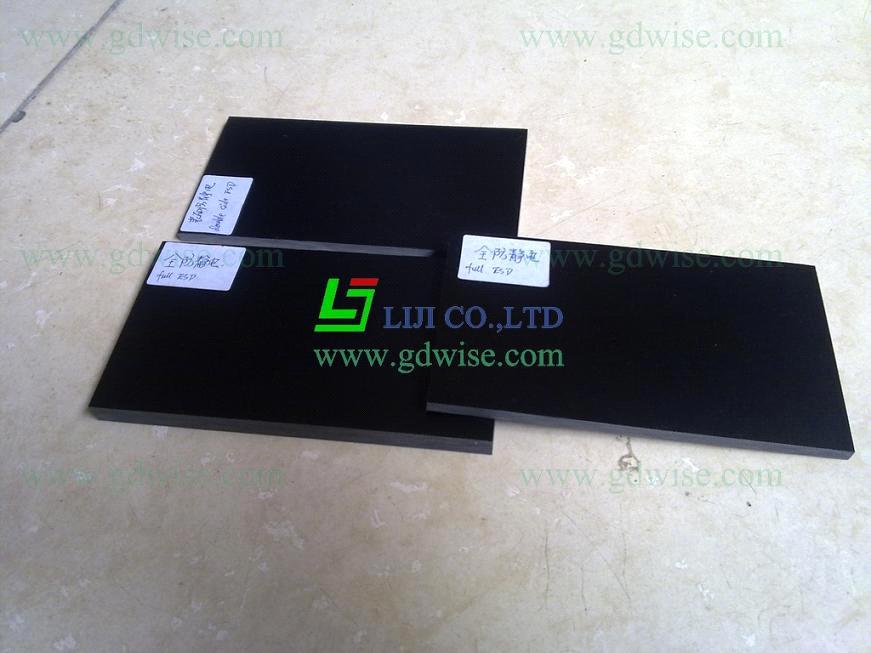

ESD & Antistatic & Semi-conductive Epoxy glass cloth laminated sheet (ESD G10 FR-4)
| FOB Price: | 10.00 - 100.00 USD/Square Meter |
|---|---|
| Supply Ability: | 50,000 Square Meter per Month |
| Shipping: | By Express, By air, By sea |
| Payment Terms: | L/C, T/T, D/A, D/P, Paypal, Western Union, negotiable |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | Pallet |
Specifications
G-10/FR-4 ESD Grade
This break-through Electro-Static Dissipative material offers users a number of important
This break-through Electro-Static Dissipative material offers users a number of important
1. Advantages over other ESD products.
.The ESD material is an integral part of the G10/FR4 glass epoxy base.
.The surface resistivity can be supplied to the users specification.
.It offers improved machinability and tighter tolerances.
.Designed to meet MIL STD 1686.
While most ESD coatings are sprayed, painted or laminated to an insulating base, this product is physically part of the glass epoxy base. This eliminates the potential chipping, cracking or peeling. Also, there is no need for paint booths, paint chemicals and other potentially dangerous and costly equipment and materials.
2. Base Material is G10/FR4 - This material offers high mechanical strength at room temperature. It exhibits good dielectric loss and electrical strength under both dry and humid conditions. In addition, it has flame resistance of at least Class I in accordance with NEMA test method 7.11.
3. ESD Properties:- Designed to meet MIL STD 1686, this electro-static dissipative material can be supplied with a surface resistivity to any level from 10*5 to 10*12 to meet customer specifications.
4. USES:- Intended for use in static sensitive electronic equipment, like electrotest vacuum jigs, inspection templates, mechanical parts in esd sensitive areas etc.
5. SIZES:- Can be supplied in cut-to-size sheets per customer specifications.
