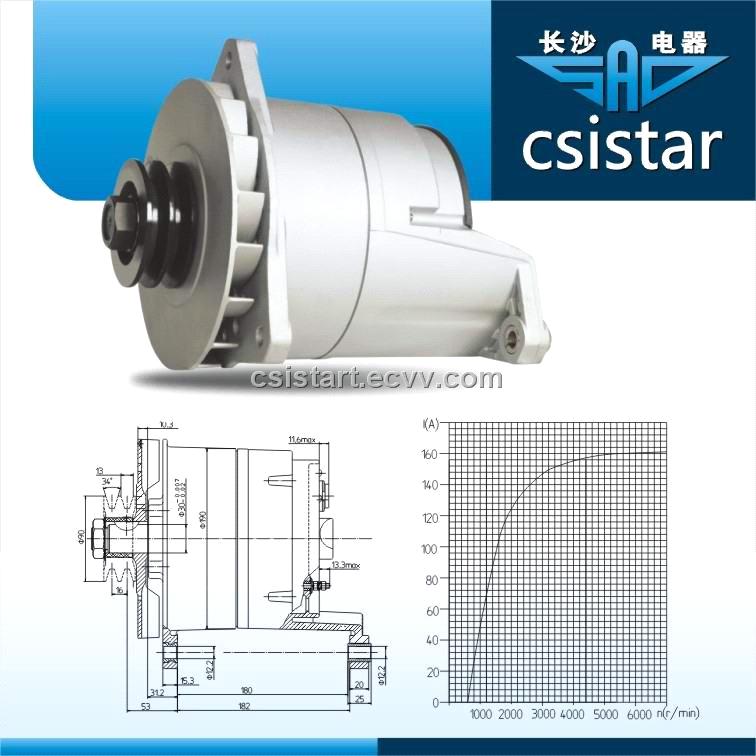

coach alternator

Inquiry Now

Export Markets:	North America, Eastern Europe, Oceania, Western Europe

Specifications

BOSCH T1 0 120 689 503/508/512/513/514/515/520/530/532/533/535/571/573/505/526/552/506/542/567/511/548/566/546/517/522/527/540/569

Alternator Operating Voltage: 28V

Voltage Regulation: 28.5±0.2V

Max. Output Current(hot): 140A

Operating Ambient: -40℃-90℃

Max.Speed(continuous): 8000r/min

Ratation:Clockwise,Viewing from drive end

Operating Ambient: -40℃-90℃

Operating Speed: 6000r/minMax.Speed: 8000r/min

Performance Parameter:

Cold: U=27V n=1500r/min I≥80A

U=27V n=6000r/min I≥162A

Hot: U=27V n=1500r/min I≥70A

U=27V n=6000r/min I≥140A

The alternator has eight paw-poles

Mounting dimensions can be customized.

Choice belt-pulley

Weight:15kg
