>Products Catalog > 5M High Precision 1mm Laser Distance Meter RS232 Serial Port with Communicaiton Protocol

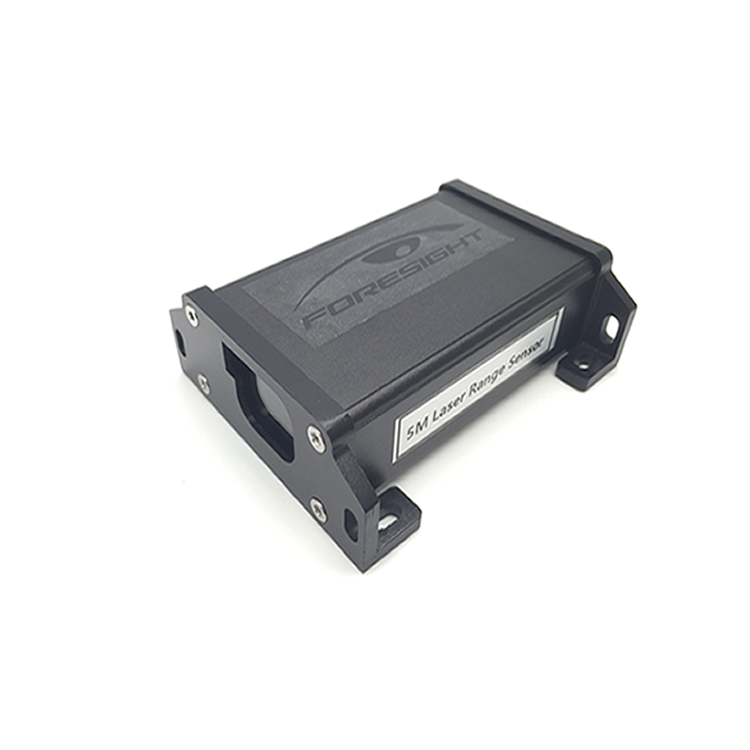

5M High Precision 1mm Laser Distance Meter RS232 Serial Port with Communicaiton Protocol
| Supply Ability: | 1,000 Piece(s) per Month |
|---|---|
| Shipping: | 3working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Carton |
Quick Details
- Measurement Range: 0.05-5m
- Measurement Accuracy: 1mm
- Size: 57x28x100mm
- Brand Name: FORESIGHT
- Gross Weight: 160g
- Model Number: FST-5M
- Measurement rage: 0.05-5m
- Measurement accuracy: 1mm
- Laser grade: class 2
- IP Grade: IP65
- Output mode: RS232 or 4-20mA
- Laser wavelength: 635nm
- Baud rate: 19200BPS
- SIZE: 57x28x100mm
Specifications
Type: |
FST-20M |
Power Supply |
5VDC or 9-24VDC |
Measurement Accuracy |
+/-1mm* |
Measurement rage(No reflector |
0.05-20m |
Measurement Rate: |
1-10Hz |
Laser Energy |
10mj |
Laser Life |
20000h |
Spot Size |
5mm(10M) 8mm(20-50M) |
Laser beam angle |
1mrad |
Laser Grade |
|
Output Mode |
UART;RS232,, Analog output 4-20mA |
Laser type |
635nm,<1mw |
Power Consumption |
<1W |
Dimensions |
57x28x100mm |
Weight |
160g |
Operation temperature |
-20 C60 C |
Storage temperature |
-25 C60 C |
Protect Grade |
IP67 |

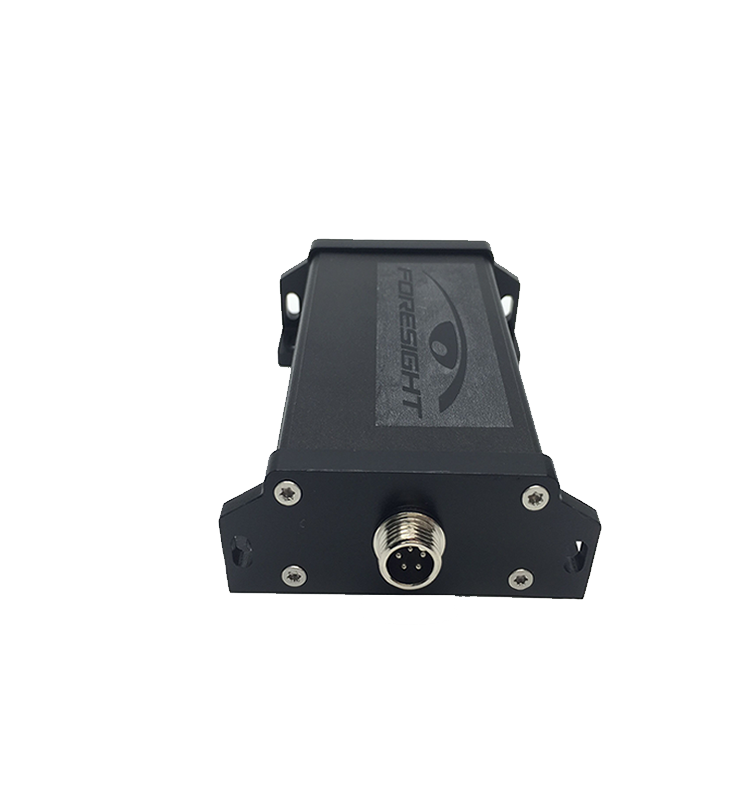

Cable connecting definitions
Red Line------VCC 5VDC or 9-24VDC
Black Line-----GND
White Line-----RX,
Green Line----TX;
Yellow Line------SGND;
under the condition of bad measurement(for example if the Ambient light is too strong. the point measured diffuse reflection coefficient Is too big or too small, measurement accuracy has big error:1 mm+40PPM)
Kindly Prompt: If need to DB9 Female head, so RX,TX and G Will be corresponding to connection to Second, Third and Fifth base pin of DB9 Head separately.
