Shenzhen ANKD Electronics Co., Ltd.
China Manufacturer with main products: CCTV Camera, Security Camera, CCTV Security, Surveillance Camera, surveillance equipment, DVR, dome camera, box camera |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
| SPECIFICATION | ||||

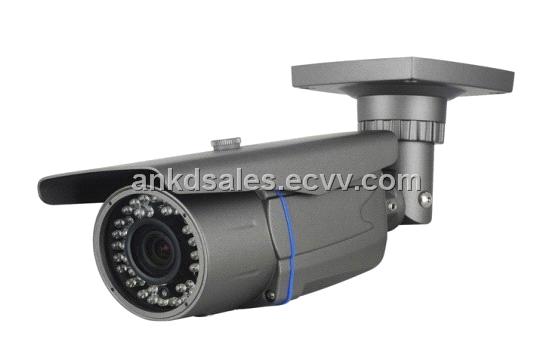

| Model | AKD-W233BM | AKD-W237BM | AKD-W240BM | AKD-W673BM |
| Image Sensor | 1/3 Sony Super HAD | |||
| Horizontal Resolution | 420TVL | 540TVL | 600TVL | 700TVL |
| Pixel | PAL: 500Hx582V NTSC:510Hx492V | PAL: 752Hx582V NTSC:768Hx492V | PAL: 752Hx582V NTSC:768Hx492V | PAL: 976Hx582V NTSC:976Hx494V |
| TV System | PAL/NTSC | |||
| IR LED | 42 pcsxΦ5 | |||
| IR Distance | 40M | |||
| Lens | 3.5-8mm/4-9mm option | |||
| Sync System | internal | |||
| Illumination | 0 Lux IR on (minimum) | |||
| S/N Ratio | ≥50dB, (AGC Off) | |||
| Gamma Correction | 0.45 | |||
| Video Out | 1.0Vp-p 75 Ohms | |||
| Working humidity | 90% RH (no cong-elation) | |||
| Electronic Shutter Time | 1/50 to 1/60 to 1/100,000 seconds | |||
| Operation Temperature | -20 to +50 degrees Celsius | |||
| Storage Temperature | -10 to +50 degrees Celsius | |||
| White Balance | Automatic | |||
| Power Source | 12V DC ±10%,2A | |||
| Dimension | 280*90*90mm | |||
| Weight | 1.3kg | |||
