Specifications
Product Description

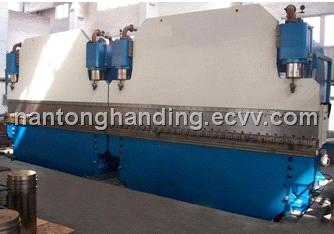

This model of hydraulic press brake(hydraulic bending machine) has following performance:
model: series 2-WE67KThis model of hydraulic press brake(hydraulic bending machine) has following performance:
1 The frame of machine is composed of tank, worktable, left and right housings and ram. So it has high strength and good rigidity. Also it takes vibration to eliminate stress.
2 Synchronization working principal of both machines: Adopting electric-hydraulic proportional valve to ensure the synchronization of both machines. The proportional valve is made by BOSCH company with very good performance such as small friction between mechanic action pairs, fine electronic amplifier and electric magnet with high controlling force and continuous action. There are two raster displayers on both sides of machine to inspect the position of ram continuously and feed back the signal to control system, then the control system will control electric-hydraulic valve to make two cylinders synchronization on one machine. Because the raster displayers are installed to C plates, not on housing plates directly, the deflection of ram and frame when working will not effect its measuring and controlling precision. When two machines working together, the differential potentiometer installed between two machines will transfer the mechanic synchronizing signal into electronic one and feed back to synchronization plate and control system. The signal will be enlarged by BOSCH amplifier to control the synchronization of both machines by controlling electric-hydraulic proportional valve. So the synchronization of two machines is achieved with high precision.
3 Through computer, the operator could communicate with machine. The computer has several service language, calculate and adjust the bending force automatically. Also it could calculate and control the dead point, speed changing point. The strokes (Y1, Y2) of ram could make a small tilt to meet the special requirement of user.
4 Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.
5 Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.
Product parameters:
|
model
|
Nominal pressure
(KN)
|
Length
of table
(mm)
|
Distance between housings
(mm)
|
Throat depth
(mm)
|
Stroke
of ram
(mm)
|
Strokes
of ram
(mm)
|
Max.
open height
(mm)
|
Main motor
(kw)
|
Weight
(kg)
|
Overall
dimensions
|
|
2-WE67K-320/6000
|
3200
|
6000
|
4800
|
720
|
250
|
≥1.5
|
870
|
22
|
33000
|
2x6150x2614x5470
|
|
2-WE67K-600/6000
|
6000
|
6000
|
4800
|
1000
|
320
|
≥1.5
|
1000
|
45
|
6200
|
2x6080x4435x7300
|
|
2-WE67K-800/6000
|
8000
|
6000
|
4800
|
1100
|
350
|
≥1.5
|
1100
|
55
|
8500
|
2x6100x6915x5400
|
|
2-WE67K-1000/6500
|
10000
|
6500
|
4880
|
1400
|
400
|
≥1.5
|
1400
|
55
|
125000
|
2x6500x7935x6900
|
|
2-WE67K-1200/7000
|
12000
|
7000
|
5600
|
1600
|
450
|
≥1.5
|
1800
|
75
|
145000
|
2x7100x8535x7500
|
|
2-WE67K-1600/9000
|
16000
|
9000
|
6500
|
1100
|
450
|
≥1.5
|
1250
|
2x55
|
170000
|
2x9100x8200x8250
|
