RG59 CCTV+ 2C Power Cable combined

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Submarine Cable

Price:

Min. Order:
Silicone Power Wire

Price:0.65-1.25 USD/Meter

Min. Order:100 Meter
High performance Coil/Spiral cables

Price:2.00-3.00 USD/Piece

Min. Order:1,000 Pieces
Helical Cable Spiral Cable for Industrial Door ...

Price:6.00-10.00 USD/Piece

Min. Order:100 Pieces
ABS Power Cable Truck Trailer Coil Sprial Cable

Price:8.50-9.30 USD/Piece

Min. Order:100 Pieces

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	305M/EASY PULL BOX, 305M/Wooden reel

Specifications

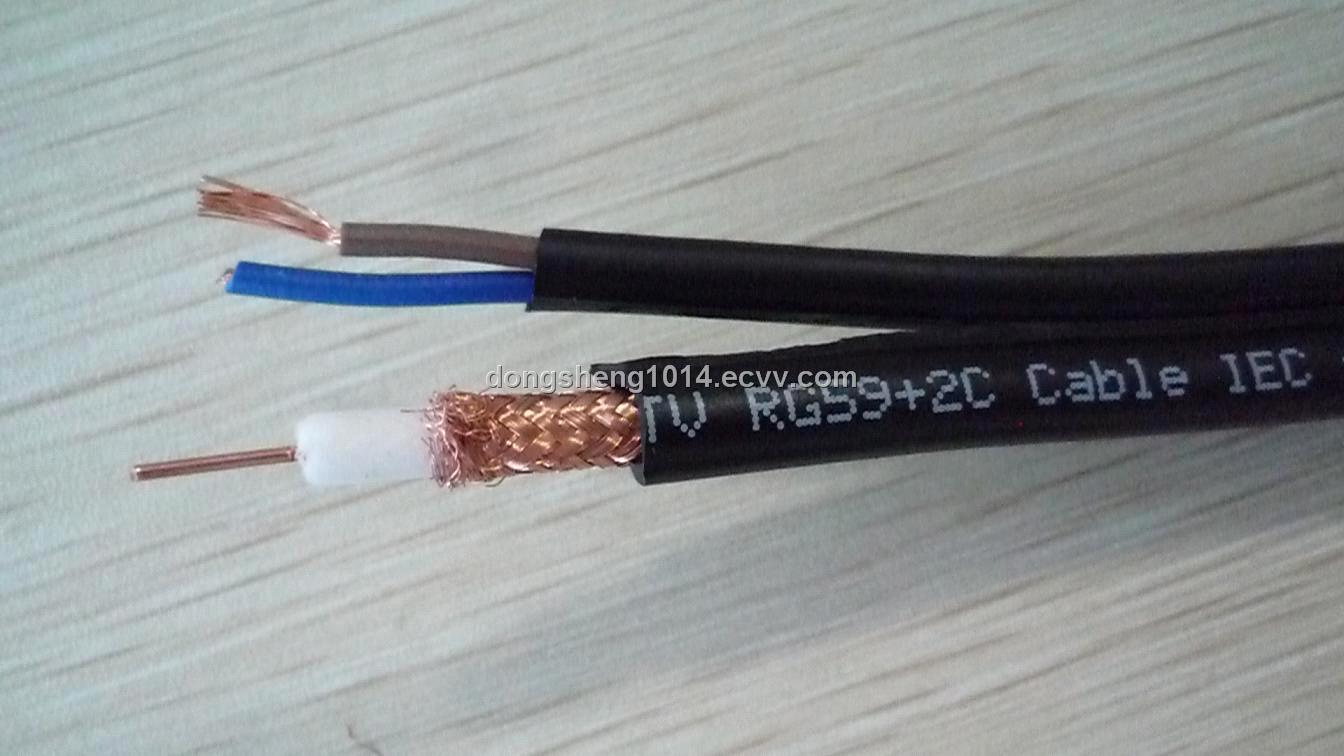

RG59 CCTV+ 2C Power Cable combined

Specifications:

BC: Bare Copper TC: Tinned Copper

CCS: Copper Clad Steel

CCA: Copper Clad Aluminium C:Cores

1)RG59+2C

RG59:0.81mm CCS/BC Conductor +3.65mm Solid/Foam PE+BC/TC Braiding +6.1mm PVC Jacket

2C/18AWG power cable:2C*42*0.174mm BC Conductor + 2.17mm PVC Insulation + 0.63mm PVC Jacket

2) Customers' specifications are wellcomed.

Note:

1) Center conductor: TC , BC and CCS available, CCA;

2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil and Messenger are available;

3) Braiding wire: AL, BC and TC available;

4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;

5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;

6) Braiding coverage: Between 30- 97% available;

7) PVC jacket of Flame retardant , UV, or UL available.

Packing:
1) 305M/EASY PULL BOX, 305M/Wooden reel,Two boxes into one Carton
2) Other packing available according to client's request
