Specifications

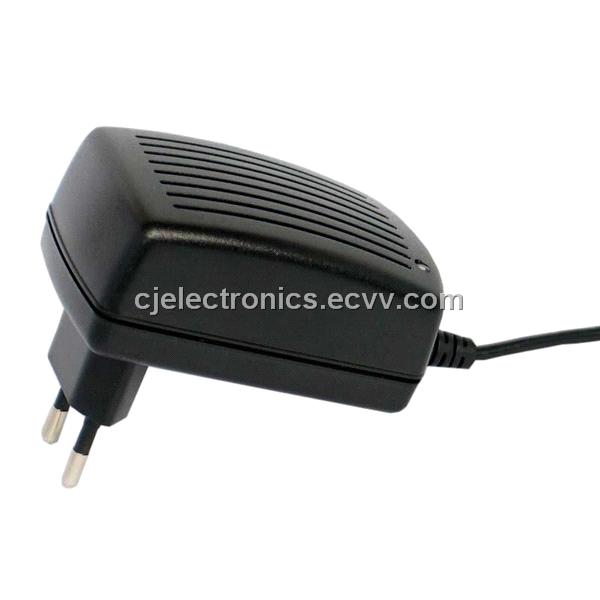

CJ-PA07-1 12V 1A Adapter For Camera
Feature
Product type: 12V Power Adapter
Power Supply:
Input: 100-240v, 50-60Hz; Standard Output: 12v1a
Power Supply:
Input: 100-240v, 50-60Hz; Standard Output: 12v1a
Specification
|
Model
|
CJ-PA07-1
|
|
|
Input
|
Input voltage
|
AC100-240V, 50-60Hz
|
|
Output
|
Output connector
|
EUR
|
|
Max power
|
12W
|
|
|
Output voltage
|
DC 12V + / - 5%
|
|
|
Ripple wave
|
(mVp-p): < 1%
|
|
|
Linear modulate
|
± 0.5%max
|
|
|
Temperature coefficient
|
± 0.02%/℃
|
|
|
Start time
|
≤ 3s(240VAC output, io=100%)
|
|
|
Guard time
|
≥ 20ms(240VAC input, io=100%)
|
|
|
Output standard
|
12V1A
|
|
|
Protection
|
Override protection
|
115%～200%vA, automatic recovery
|
|
Short-circuit protection
|
1 channel: automatic recovery
|
|
|
Insulation
|
Insulation strength
|
1500VAC/10mA, 1MIN
|
|
Insulation resistance
|
≥ 30MΩ, DC 500V
|
|
|
Environment
|
Working temperature
|
0℃～40℃, 10%～90%RH
|
|
Store temperature
|
-20℃～60℃, 10%～90%RH
|
|
|
Size
|
Size
|
85*44*67mm
|
|
Net Weight
|
90g
|
|
