Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th
Dongfeng Towing Road Wrecker Truck
| FOB Price: | 30,000.00 - 40,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | 10 days |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waxed, etc. |
Specifications

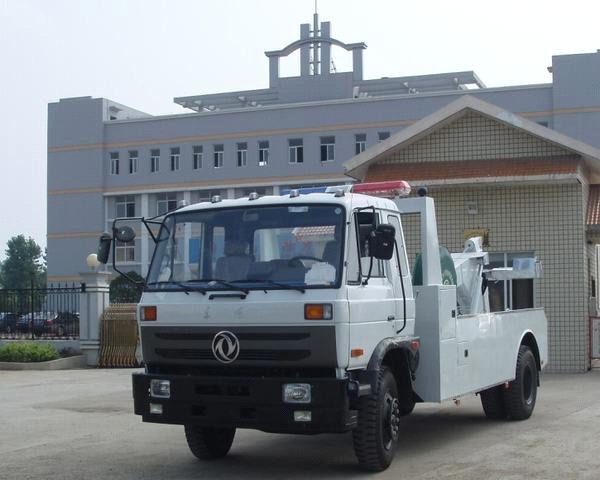

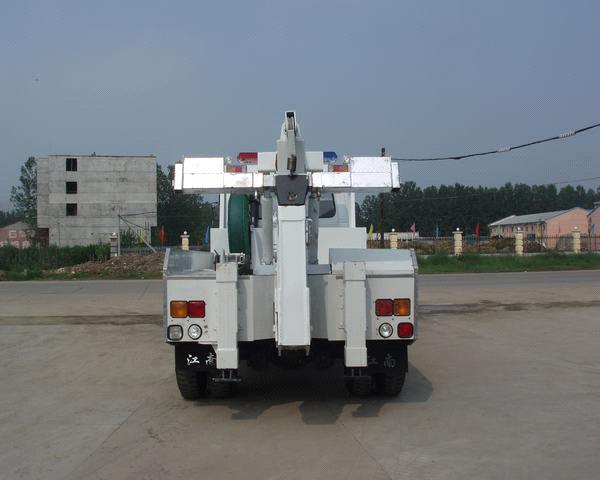

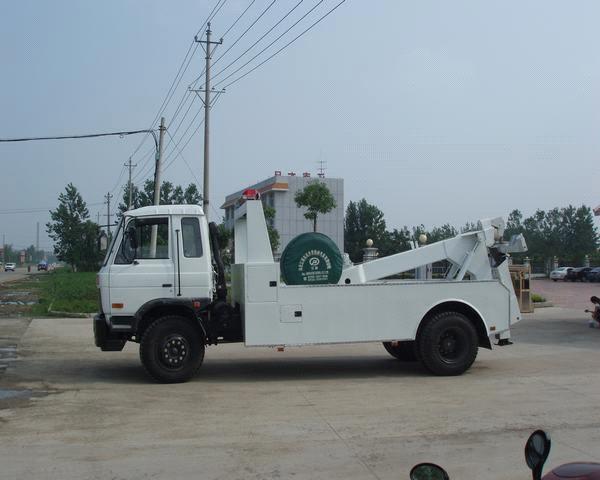

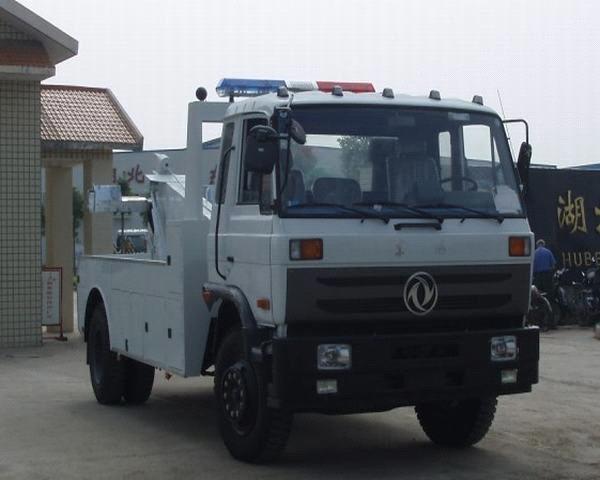

Dongfeng Towing Road Wrecker Truck
Vehicle summary: This vehicle refitted by EQ5160GJYGSZ3GJ chassis, it with powerful function, economic and practical, be widely used in highway department, auto repair shop, etc.
|
Vehicle model
|
JDF5160TQZE
|
Chassis model
|
EQ5160GJYGSZ3GJ
|
|
|||||
|
Weight parameter
(kg)
|
Payload weight
|
/
|
Overall dimension(mm)
|
7700,7900×2498×2960
|
|
||||
|
Curb weight
|
11825
|
Cargo dimension(mm)
|
/
|
|
|||||
|
Overall weight
|
16000
|
Wheel base(mm)
|
5000
|
|
|||||
|
Engine parameter
|
Model
|
B170 33
|
Type
|
Diesel
|
|
||||
|
Power/Displacement
|
125/5900
|
Producer
|
Dongfeng Cunnins Motor Co., Ltd.
|
|
|||||
|
Engine optional
|
B190 33(140/5900)YC6J190-30(140/6494)YC6J170-33(125/6494)B19033(140/5900)
|
|
|||||||
|
Performance parameter
|
Max speed(km/h)
|
85
|
Tread(mm)
|
Front axle
|
1900
|
|
|||
|
Max gradability(%)
|
27
|
Rear axle
|
1800
|
|
|||||
|
Fuel consumption/100km(L)
|
24
|
Overhang(mm)
|
Front overhang
|
1250
|
|
||||
|
Empty in the slope (%)
|
≮18
|
Rear overhang
|
1450,1650
|
|
|||||
|
Min turning diameter (m)
|
≤16
|
Driving angle(°)
|
Approach angle
|
30
|
|
||||
|
Min ground clearance (mm)
|
250
|
Departure angle
|
14
|
|
|||||
|
Chassis
|
5T front axle load, 10T rear axle load, 6 speed gear box, tire: 10.00-20
|
|
|||||||
|
Special function
|
Rated lifting quality (kg)
|
3980
|
Max lifting height(mm)(optional)
|
3520
|
|||||
|
Max lifting quality (kg)
|
10000
|
Max lifting weight(kg)(optional)
|
3000
|
||||||
|
Under-hoist travel(mm)
|
700
|
Telescope crane travel(mm)(optional)
|
2000
|
||||||
|
Max under-hoist useful length(mm)
|
1940
|
Rated traction winch(kg)
|
5000
|
||||||
|
Full extended max. lift quality(mm)
|
4300
|
Length of wire rope(m)
|
30
|
||||||
|
Number of winch(pc)
|
1×2
|
Speed of winch(m/min)
|
8
|
||||||
|
Number of hydraulic leg(pc)
|
2
|
Outrigger span(mm)
|
800
|
||||||
Remarks: The details below just for your reference, if you need more information, please feel free to contact Ms Jessie Jin!
