Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th
HOWO Heavy Wrecker Truck
| FOB Price: | 90,000.00 - 130,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | 15 days |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waxed, etc. |
Specifications
HOWO Heavy Wrecker Truck
Vehicle summary: This vehicle refitted by ZZ1256M4646C chassis, it with powerful function, and be widely used in highway department, auto repair shop, etc.
|
Vehicle model
|
JDF5380TQZZ
|
Chassis model
|
ZZ1317N4667C
|
|||
|
Weight parameter
(kg)
|
Load weight(kg)
|
/
|
Overall dimension(mm)
|
10950×2495×3300,3450
|
||
|
Curb weight(kg)
|
25020
|
Cargo dimension(mm)
|
/
|
|||
|
Max overall weight(kg)
|
38000
|
Wheel base(mm)
|
1800+4600+1350
|
|||
|
Engine parameter
|
Model
|
|
Type
|
Diesel
|
||
|
Power/Displacement(KW/ML)
|
|
Produce factory
|
China Sinotruck Co., Ltd.
|
|||
|
Performance parameter
|
Max speed(km/h)
|
90
|
Track span(mm)
|
Front axle
|
2022/2022,2041/2041
|
|
|
Cab
|
Flat head and single row
|
Rear axle
|
1830/1830
|
|||
|
Cab seats
|
2
|
Reaching out of vehicle(mm)
|
Front suspension
|
1500
|
||
|
No. of tires
|
12
|
Rear suspension
|
1650
|
|||
|
Tire size
|
11.00-20
|
Driving angle(°)
|
Approach angle
|
16
|
||
|
Spring plate number
|
13/12
|
Departure angle
|
14
|
|||
|
Chassis
|
Rear axle: ST13, Gear box: HW13710.
|
|||||
|
Special function
|
Lifting bodies
|

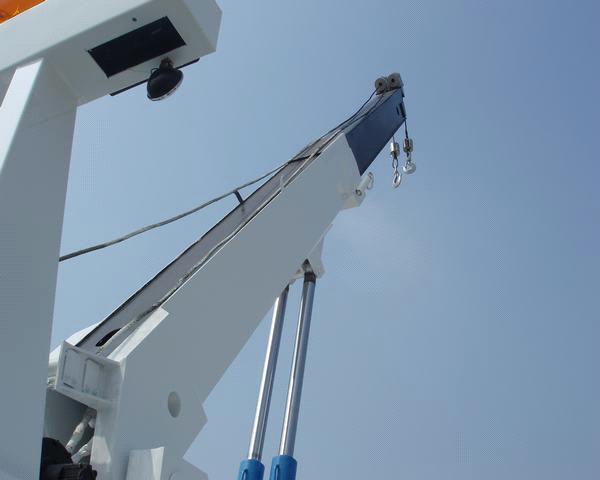

Lifting mechanism
|
||||
|
Maximum lifting quality(kg):48000
|
Effective length of telescope arm(mm):3200
|
|||||
|
Maximum lifting height(mm):12000
|
Rated lifting quality(kg):12850
|
|||||
|
Telescope crane travel(mm):6000
|
Full extend maximum lifting quality(kg):8000
|
|||||
|
Rated traction winch(kg):25000
|
Rated supporting lead quality(kg):38000
|
|||||
|
The length of wire rope(m):60
|
||||||
Remarks: The details below just for your reference, if you need more information, please feel free to contact Ms Jessie Jin!
