Boshine Industrial Co., Ltd.
China Manufacturer with main products: Speed/Gear Reducer, Electrical Motor, Gear Motor, Helical Gear Units, Worm Gearbox, Bevel Gear Reducer, Cycloid Gear Reducer, Variable Speed... |
Home
>Products Catalog > 4.S Helical-worm Gear Reducer (motor) > Helical Worm Gear Reducer Motor (S series Right Angle Shaft)

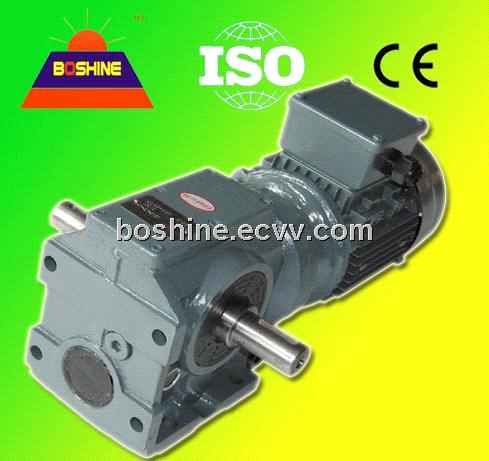

Helical Worm Gear Reducer Motor (S series Right Angle Shaft)
| Supply Ability: | 1,500 Set/Sets per Month |
|---|---|
| Shipping: | Delivery within 12~20 business days after receiving bank slip.Ningbo or Shanghai port. |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | INNER:plastic film bag and foam box,OUTER:plywood box.1set/bag 1bag/box |
Quick Details
- Standard or Nonstandard: Standard
- Tooth Profile: Helical Gear
- Material: Iron
- Processing: Precision Casting
- Model Number: S-Y
- Brand Name: BOSHINE
Specifications
Helical Worm Gear Reducer Motor (S series Right Angle Shaft)
|
Feature
|
||
|
Drive Motor
|
Power(P1)
|
Y/Y2 Induction Motor, 0.12Kw~55Kw
|
|
Voltage Scope(V)
|
110V~660V or make specially according to clients'requirement.
|
|
|
Phase
|
Single(under 3Kw) or Three
|
|
|
Pole
|
2 or 4 or 6 or 8 or 10
|
|
|
Motor Speed(N1)
|
Relys on motor pole:600r/min~3000r/min
|
|
|
Frequency
|
50Hz or 60Hz or 50/60Hz
|
|
|
Insulation Class
|
B or F
|
|
|
IP
|
IP54 or IP55 or make specially according to clients' requirement.
|
|
|
Duty
|
S1
|
|
|
Cooling Type
|
IC0141(Fan Self-cooling) or Blower
|
|
|
Terminal Box
|
0o or 90o or 180o or 270o,any position is allowed
|
|
|
Link Wire
|
Y(P1≤3Kw), Δ(P1>3Kw)
|
|
|
Operation Temperature
|
Normally:-15℃~ 40℃.If end-user's special requirement,we'll make it specially.
|
|
|
Connect Method
|
Direct type, if end-user is convenient to replace motor, please ask us to add extra motor adapter.
|
|
|
Ratio Scope(i)
|
15~389, if client want bigger ratio, please consider combination type
|
|
|
Rated Torque(N.m)
|
60N.m~1000N.m
|
|
|
Output Speed(N2)
|
Depends on motor pole: N1/ratio(i), N2=1.5r/min~200r/min
|
|
|
Service Factor(Fs)
|
1.5~5.0
|
|
|
Mount Type
|
Double extension solid output shaft mounted and fixed holes
|
|
|
Installation Direction
|
Horizontal or Vertical is allowed
|
|
|
Installation method, Detailed dimension, Lubrication oil list etc, download pdf file.
|
||
