Chongqing Qianneng Industry(Group) Co., Ltd.
China Manufacturer with main products: Oil Purifier, Transformer Oil Purification, Oil Regeneration, Oil Recycling |

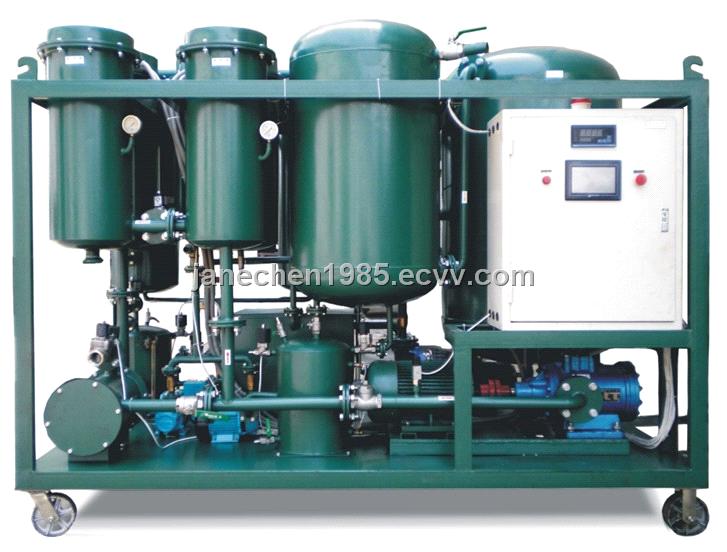

TYD oil and water separator
| Supply Ability: | 500 Set/Sets per Month |
|---|---|
| Shipping: | 15 days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden carton |
Specifications
Technical features:
1.High water removal and demulsifying capacity,which could remove large amount of water and minimal amount of water from oil.
2.Application of film evaporation and molecule evaporation technology enable quick demulsifying, and make the turbid and emulsified oil become limpid and clear .
3.The film evaporation and molecule evaporation technology is of a lifetime service (above 20 year ),which avoid the periodic filter replacement,also reduces the cost of purification and the intensity of work.
4.It has a strong impurity removing capability,its automatic backwash filter element can remove large amount of inpurities in the oil while the precise filtration materials can remove the granules in the oil serving an oil serving as an oil cleaning system,which brings serious contaminated oil system back to the “steam turbine oil contamination control standerd”
5.It is of high automation,small size,safe and reliability.an machine separated operation, makingthe operation easier and more reliable.
Use:
TYD purifier is particularly fit to treatment to high water content turbine oil hydrzulic oil,freezing machine oil,as well as other lubricant oil which requires to have large amount of water be removed and impurities be removed by precision filtration.
|
Iitems
|
Unit
|
TYD-10
|
TYD-20
|
TYD-30
|
TYD-50
|
TYD-100
|
TYD-150
|
TYD-200
|
|
|
Flow
|
L/min
|
10
|
20
|
30
|
50
|
100
|
150
|
200
|
|
|
Working pressure
|
Mpa
|
≤0.3
|
|||||||
|
Power supply
|
|
380V 50HZ(or at user’s option)
|
|||||||
|
Noise
|
dB(A)
|
≤65-80
|
|||||||
|
Continuous running hours
|
h
|
≥4000
|
|||||||
|
Heating power
|
Kw
|
60
|
60
|
60
|
90
|
150
|
180
|
210
|
|
|
Total power
|
Kw
|
63
|
65
|
68
|
100
|
165
|
196
|
230
|
|
|
dimension
|
L
|
mm
|
1500
|
1600
|
1650
|
1700
|
1750
|
1800
|
2200
|
|
W
|
mm
|
1000
|
1200
|
1250
|
1300
|
1400
|
1400
|
1550
|
|
|
H
|
mm
|
2000
|
2100
|
2100
|
2200
|
2200
|
2200
|
2200
|
|
|
After
filtration
|
Demulsifying
value
|
min
|
≤8(GB/F7035)
|
||||||
|
Water content
|
Pp,
|
≤50
|
|||||||
|
Gas content
|
%
|
≤0.1
|
|||||||
|
cleanliness
|
NAS1638
|
≤6
|
|||||||
