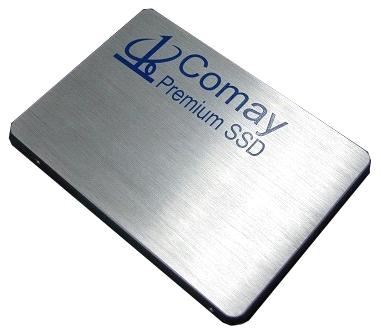

Destop/Laptop SATA III MLC SSD Venus 3

Specifications

How to contact with CoreRise directly?

Contact person: Mr. Bailey Cypress

E-mail: bailey(alt)corerise(dot)com , baileycypress(alt)gmail(dot)com

MSN: bailey61(alt)126(dot)com

Designed for high end consumers, the Venus 3 series implements top quality Nand Flash chips, the most competent processor and the elegant fine tuned circuit design, providing superior performance and reliability that surpass the leading HDDs used today.

With no moving parts, the Venus 3 SSD has much faster performance and much lower power consumption than HDDs. Based on a SATA III 6Gbps interface, it offers sequential read speed up to 555MB/s, sequential write speed up to 520MB/s, 4KB random read IOPS up to 60000 and 4KB write IOPS up to 85000, while it consumes only 3W power during operation!

The Venus 3 series is made of Original IMFT MLC Nand Flash; it offers not only a trustful stable high performance but also a long endurance of 3K P/E cycle.

Solid State means reliable and rigid. The Venus 3 series eliminates the risk of mechanical failures and offers a highly rugged storage solution. It works well under 0~70℃ temperature and 20G vibration conditions. The MTBF is 2 million hours.

The SF-2281 Processor delivers best-in-class performance, endurance, security and power efficiency in a ‘DRAM-less’, single chip solution.

Endurance and Longevity. DuraWrite technology optimizes writes to the Flash memory increasing the overall endurance and reliability of the overall SSD. Highly intelligent block management and wear leveling also extends the overall endurance.

Performance and Power Optimization. The SF- 2281 processor delivery performance that maximizes the throughput of a 6Gb/S SATA interface with balanced read/write speeds. Taking this advantage, even the small capacity Pluto SW 3 50GB can reach the speed limit of SATA III interface both of compressible and incompressible data. In addition, the SF-2281 power management promises a very low power consumption of max. 3W in operation.

Computing Security. The SF- 2281 processor features high level security protocols to protect the data. DuraClass technology automatically stores data in highly secure AES- 256& 128 encrypted format and provides hardware randomly generated encryption key that double encrypts the data. It also optionally supports TCG Opal security requirements.

Comay SSD Toolbox. Comay SSD Software Toolbox integrates SSD health condition monitoring, firmware upgrading and quick performance recovery. It maximizes hardware and software configurations and contributes to maintain the ultimate and stable performance.

Fine tuned circuit design. CoreRise fine tuned circuit design optimizes data transferring efficiency, it also gives static protection, short circuit protection and high efficiency cooling fucntion, promising Comay SSDs better operation experiences and reliability than most SSDs who adopts reference circuit designs.

CoreRise ensures all NAND Flash chips with top reliability by pre-SMT sorting and post-SMT tests. All CoreRise SSDs pass the strict standard CR-C/E/I/M tests.

Comay Venus 3 is made of Asynchronous NAND Flash while faster and better Synchronous version is also available.

For write intensive applications, users are strongly recommended to adopt Comay SLC solutions which support SATA II, SATA III and IDE interfaces.

The Ultimate Consumer SATA III SSD

Designed for high end consumers, the Venus 3 series implements top quality Nand Flash chips, the most competent processor and the elegant fine tuned circuit design, providing superior performance and reliability that surpass the leading HDDs used today.

With no moving parts, the Venus 3 SSD has much faster performance and much lower power consumption than HDDs. Based on a SATA III 6Gbps interface, it offers sequential read speed up to 555MB/s, sequential write speed up to 520MB/s, 4KB random read IOPS up to 60000 and 4KB write IOPS up to 85000, while it consumes only 3W power during operation!

The Venus 3 series is made of Original IMFT MLC Nand Flash; it offers not only a trustful stable high performance but also a long endurance of 3K P/E cycle.

Solid State means reliable and rigid. The Venus 3 series eliminates the risk of mechanical failures and offers a highly rugged storage solution. It works well under 0~70℃ temperature and 20G vibration conditions. The MTBF is 2 million hours.

Preeminence with SandForce Processor

The SF-2281 Processor delivers best-in-class performance, endurance, security and power efficiency in a ‘DRAM-less’, single chip solution.

Endurance and Longevity. DuraWrite technology optimizes writes to the Flash memory increasing the overall endurance and reliability of the overall SSD. Highly intelligent block management and wear leveling also extends the overall endurance.

Performance and Power Optimization. The SF- 2281 processor delivery performance that maximizes the throughput of a 6Gb/S SATA interface with balanced read/write speeds. Taking this advantage, even the small capacity Pluto SW 3 50GB can reach the speed limit of SATA III interface both of compressible and incompressible data. In addition, the SF-2281 power management promises a very low power consumption of max. 3W in operation.

Computing Security. The SF- 2281 processor features high level security protocols to protect the data. DuraClass technology automatically stores data in highly secure AES- 256& 128 encrypted format and provides hardware randomly generated encryption key that double encrypts the data. It also optionally supports TCG Opal security requirements.

Added Values by Innovative Technology

Comay SSD Toolbox. Comay SSD Software Toolbox integrates SSD health condition monitoring, firmware upgrading and quick performance recovery. It maximizes hardware and software configurations and contributes to maintain the ultimate and stable performance.

Fine tuned circuit design. CoreRise fine tuned circuit design optimizes data transferring efficiency, it also gives static protection, short circuit protection and high efficiency cooling fucntion, promising Comay SSDs better operation experiences and reliability than most SSDs who adopts reference circuit designs.

Incomparable Quality Assurance

CoreRise ensures all NAND Flash chips with top reliability by pre-SMT sorting and post-SMT tests. All CoreRise SSDs pass the strict standard CR-C/E/I/M tests.

Various Solutions

Comay Venus 3 is made of Asynchronous NAND Flash while faster and better Synchronous version is also available.

For write intensive applications, users are strongly recommended to adopt Comay SLC solutions which support SATA II, SATA III and IDE interfaces.
