Home >Products Catalog > Y cable > TUV Solar PV Molding DC Cable Assembly 2 to 1 for PV system(New design)

TUV Solar PV Molding DC Cable Assembly 2 to 1 for PV system(New design)

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Nornally 500 sets in one carton or according to customer's request

Specifications

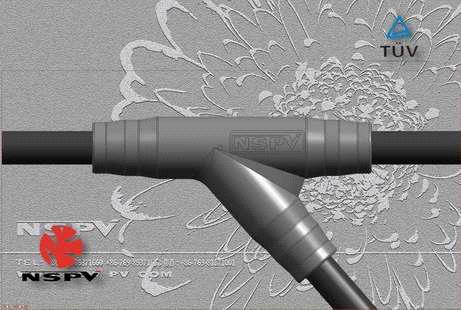

PV Molding DC Cable Assembly 2 to 1
TUV approved
Simple,easy installation
Suitable for 10~14AWG Cable

Technical Date Details

Insulation material :TPV

Rated current : 30A

Rated voltage : 1000V (TUV) & 600V (UL)

Test voltage: 6kV(50Hz,Imin)

Typical contact resistance: ≤5 mΩ

Degree of protection: IP2X/IP67

Safety degree : 2

Application class : A

Flame class : UL94-V0

Ambient temperature range : -40°C until +85°C

Suitable cable cross sections : 2.5~6mmsq(10AWG~14AWG)

Material RTI : 110°C
