Home  >Products Catalog > Aerial Platform Truck > 24m Hydraulic Aerial Bucket Truck

24m Hydraulic Aerial Bucket Truck SafeBuy Supplier Member

FOB Price: 50,000.00 - 60,000.00 USD/Set
Supply Ability: 5,000 Set/Sets per Year
Shipping: 15 days
Payment Terms: L/C, T/T, Bank transfer
In Stock
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin: Hubei in China
Packaging Details: nude, waxed, etc.

Specifications

Aerial Platform Truck

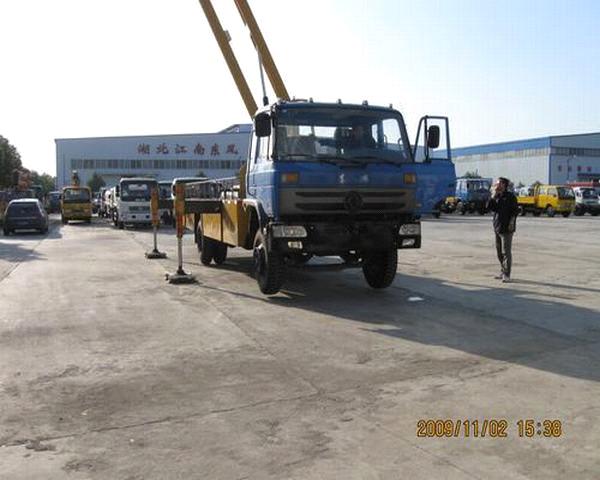

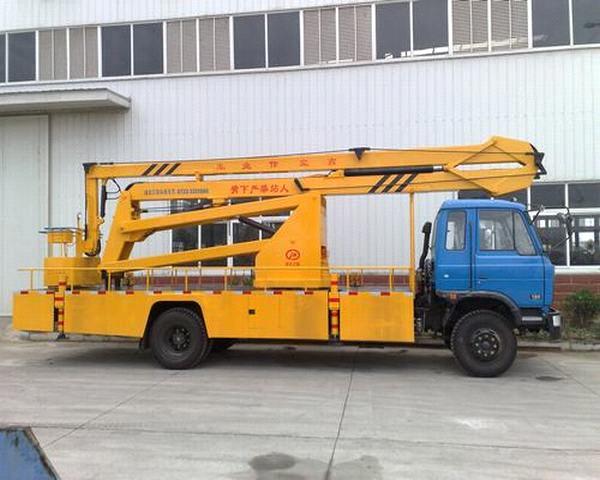

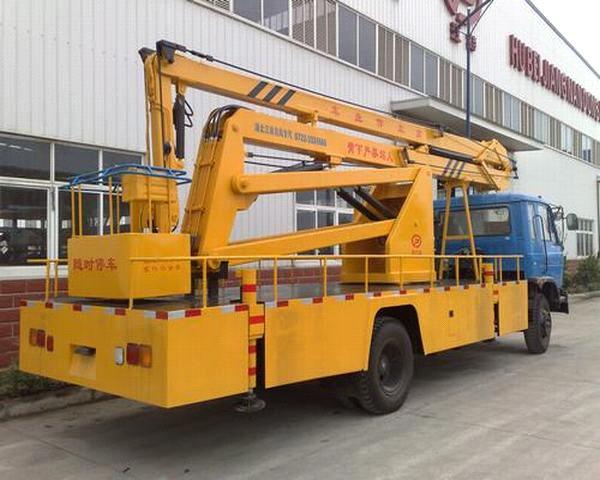

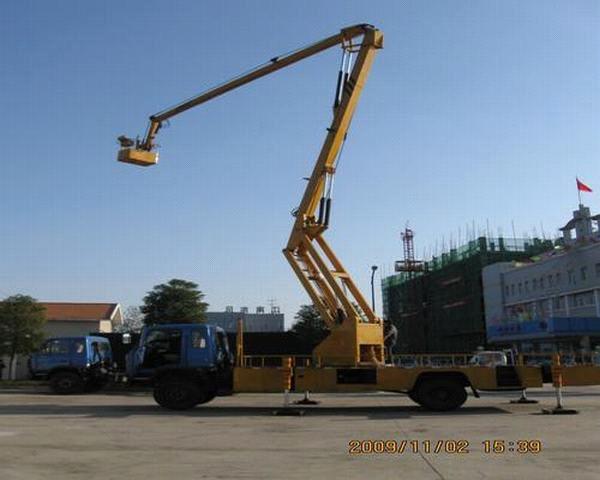

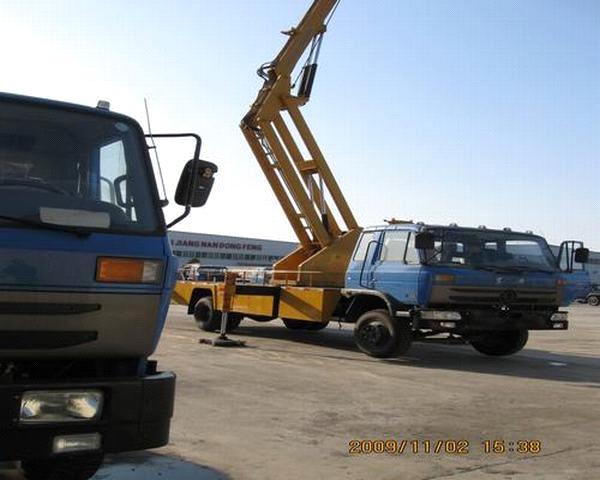

Vehicle summary: This aerial bucket truck is refitted from EQ1120GLJ chassis. It’s beautiful appearance, powerful function, operate safety. Widely used in municipal administration, power supply repair, traffic management and other department to maintenance electric, road signs install and some other high operate working.

Vehicle model
JDF5111JGKG
Chassis model
EQ1120GLJ
Weight parameter (kg)
Load weight(kg)

Overall dimension (mm)
9420×2470×3750
Curb weight(kg)
11200
Cargo dimension(mm)
/
Max overall weight(kg)
11395
Wheel base(mm)
5100
Engine

Model
YC4E160-30
Type
Diesel
Power/ Displacement
118/4260
Manufacture
Guangxi Yuchai Motors Co., Ltd.
Optional engine
ISDe185 30(136/6700)ISDe180 30(132/4500)YC6J180-30(132/6500)
Performance parameter
Max speed(km/h)
90
Tread span(mm)
Front axle
1750
Max creeping slope capacity (%)
23
Rear axle
1586
Oil consumption/100km(L)
9
Reaching out of vehicle (mm)
Front overhang
1250
Slope stop for empty vehicle (%)
20
Rear overhang
3070
Min circle turning diameter(m)
13
Driving angle (°)
Approach angle
34
Smallest ground clearance(mm)
180
Departure angle
13
Chassis
Gear box: 6 speed gear box, Front axle load: 3.6T, Rear axle load: 9, Tyre size: 9.00-20
Special function
Max operating altitude(m)
24
Max working radius(m)
8.5m
Working bucket load(kg)
200kg
Max rotation angle (°)
360
Rotation speed(r/min)
0~2r/min
Rated hoisting capacity (kg)
1000-2000kg(Optional)
Max lifting height(m)
8.8m(Optional)
Leg horizontal span(m)
3.25m
Max lift angle of upper arm (°)
70
Max lift angle of lower arm (°)
140

Remarks:
The above information is just for your reference. We can manufacture the truck according to your specific requirements.
And if any detailed information needed, pls feel free to contact Ms Jessie Jin!
