Dongguan Nosen M&E Equipment Co., Ltd.
China Manufacturer with main products: Worm Gear Screw Jacks, Spiral Bevel Gearboxes, Screw Jack Lift Systems, Electric Car Jack, Liquid Mix Agitators |
electric agitators
| FOB Price: | 150.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | GUANGZHOU PORT |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | PLYWOOD BOX |
Specifications

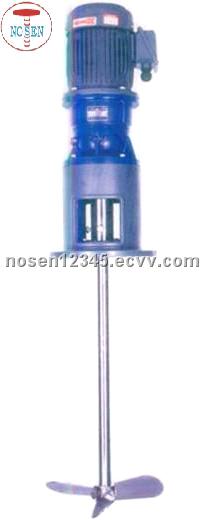

Electric agitators
main structure includes planetary reducer/gear motor and supporting base.The mixer includes shaft coupling,pole shaft and blades etc. Bellow is the main structures simple descriptions.
Planetary Reducer/Gear Motor: As many types of speed reducer,their structures and efficiences are quite different as well as the pricing. The installation and spaces could also be restricted, NOSEN supply Taiwan SANYA Planetary Reducer,to ensure liquid mixer with first-class quality.
If clients no special requirement,we will use planetary reducer. Some times clients consider the cost of liquid mixer,then we will advise clients to use Taiwan brand gear motor.
Supporting Base: Because fierce dynamic loading generated by the mixing of the fluid,the motion stability and life of the liquid mixer is determined by the structure of the supporting base. Rotating speed,viscosity and capacity etc are the factors to be considered. NOSEN will provide different models following clients requirements. All supporting base are precision machined to increase their operation stability.According to different environments,we will select the most suitable materials for supporting base.
Shaft Coupling: According pole shaft length, NOSEN will select different type flange shaft coupling for its solid structure that will connect the mixer with mixing machine firmly and in a straight line.
Pole Shaft: At present, NOSEN pole shaft materials is SS304 or SS316, is also for customization.
Mixing Blade: We have two kinds of propellers type for selection flat-blade paddles(2 blades) and airscrew blades(3 blades).Usually, SS304 or SS316 are selected,is also for customization.
Liquid mixer features:
Electricity systems: 110~440VAC, 50/60Hz, single/three phases are available
Input power: 0.2 ~ 15 kw
Mixer revolutions: 10~430 rpm; 1000 rpm or 1500 rpm is under no speed reducer.
Pole shaft diameters: 20~60 mm
Propeller diameters: 100~1000 mm
Materials: SS304/SS316
Application:
Chemical industries
Wastewater industries
Food processing
Agricalture
