Xiamen J.M. Import & Export Co., Ltd.
China Manufacturer with main products: Wheel Loader, Forklift Loader, Loader, Block Loader, Lifting Truck |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Packing in container |
Specifications
|
No.
|

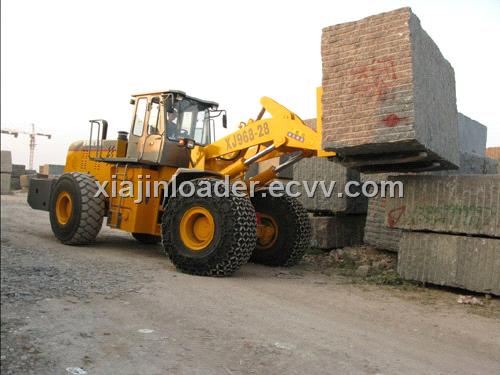

“XIAJIN MACHINERY” XJ968-28 Forklift Truck
|
|
1. Lifting height when full-load
|
When full-load (28tons), the Max. lifting height reaches 2.7m
|
|
2. Engine
|
“WEICHAI” 175kw/h
|
|
3. Oil cylinder
|
Bigger external diameter of oil cylinder piston of lifting arm and tilt cylinders, to ensure system pressure of whole machine;
Steering system is with amplified flow and bigger steering cylinders to increase the guarantee when steering under heavy loading.
Ensure system pressure of whole machine, to ensure the lifting height.
|
|
4. Wheel base
|
Long wheelbase design, small turning radius, effectively save work space.
|
|
5. Drive axle
|
Bigger and enhanced drive axles special for 25 tons forklift loaders. The bearing, gears, hub and supporting axle are all bigger.
More reliable, and low failure rate, supporting weight increased.
|
|
6. Driver cab
|
Luxurious and special driver cab made by mould, it is high in rigidity and strength; Good sound-proofing and shock-proofing.
|
|
7. Appearance
|
Luxurious and harmonious proportion structure appearance looks beautiful and elegant.
Beautiful, elegant, luxurious and practical.
|
|
8. Fork
|
Bigger forks and fork arm carrier, the width of fork reaches 280mm; Fork slope angle reaches 18 º, effectively solve the problem of unloading slope angle and taking out the fork when the height of the stacking goods reaches 3200 mm and height of loading reaches 1680 mm The thinnest place of the fork reaches 50 mm, wear-resisting, to prolong the service life.
|
|
8. Humanized and modern equipments
|
With special air-conditioner, single-handle pilot control system, electronic control gearshift to ensure easy operation and more modern;
Independent transmission oil and Hyd. Oil radiator improve the system stability.
Comfortable and easy operation, improves the system stability.
|
|
9. Structure
|
Besides the special design of structure, it is fully thickening, the thickness of lift-arm reaches 60mm, the thickness of hinged panels reaches 60mm. Bigger hinged pin and hinged bearing.
The self-weight reaches 30 tons.
|
|
10. Counter weight
|
Two corner radius of counter weight is big. Steel plate thickness of counterweight reaches 8mm. The weight reaches 9tons
|
|
11. Tire
|
Front wheels are with “ADVANCE” high-load three stars 26.5 steel wire tires (Tire load more than 60tons), Rear-wheels are with “ADVANCE” 26.5 strengthening tires.
Ensure high bearing capacity, durable,prolong the service life.
|
|
12. Humanized equipments
|
Humanized equipments: special air-conditioner, oil gauge, drinking cup and windscreen wiper water spray setting.
More humanized.
|
|
13. High strength high-pressure oil pipe
|
Oil-pipes for high-pressure position adopts high-value and durable PARKER pipe.
Reliable and durable.
|
|
14. Transmission shaft
|
Special and bigger transmission shaft to ensure reliable and durable.
|
|
15. Summary
|
The strongest loading capacity, the highest lifting height, the best devices.
|
The top performance
|
Description
|
Specifications
|
Unit
|
||
|
Rated power
|
175
|
kw/h
|
||
|
Overall dimension(L×W×H)
|
9593×2990×3650
|
mm
|
||
|
Max. lifting height
|
3450
|
mm
|
||
|
Operating weight
|
31000
|
kg
|
||
|
Max. Limited Load
|
28000
|
kg
|
||
|
Bucket capacity
|
2.7
|
m3
|
||
|
Dimensions of fork
|
(L×W×H)
|
1400×280×120
|
mm
|
|
|
Distance of fork
|
≤1350
|
mm
|
||
|
Rated loading capacity
|
28000
|
kg
|
||
|
Turning angle
|
±35°
|
|
||
|
Turning radius
|
8195
|
mm
|
||
|
Wheel base
|
4125
|
mm
|
||
|
Tread
|
2300
|
mm
|
||
|
Min. Ground clearance
|
430
|
mm
|
||
|
Unloading angle
|
18°
|
|
||
|
Haul location height(Ground clearance of material)
|
300
|
mm
|
||
|
Fuel tank capacity
|
380
|
L
|
||
|
Hydraulic fuel tank capacity
|
380
|
L
|
||
|
Specification of tyre
|
Front wheel
|
26.5 steel wire tire
|
|
|
|
Rear wheel
|
26.5 steel wire tire
|
|||
