Shenzhen Qicheng Intelligent Technology CO., LTD
China Manufacturer with main products: Mobile DVR, Car DVR, 3G Car DVR, 3G GPS car DVR, CCD camera, IP IR camera, Vehicle camera, Camera |
Home
>Products Catalog > 3G GPS mobile DVR > 3G GPS Mini Wireless Remote Monitor Hand held Portable Track Handy Mobile DVR (RC-8001HDB)

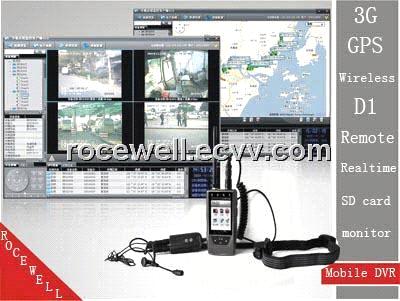

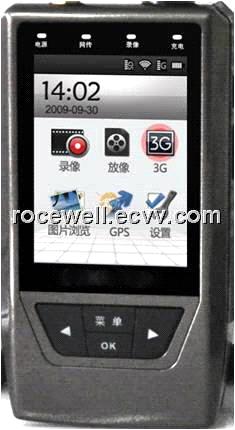

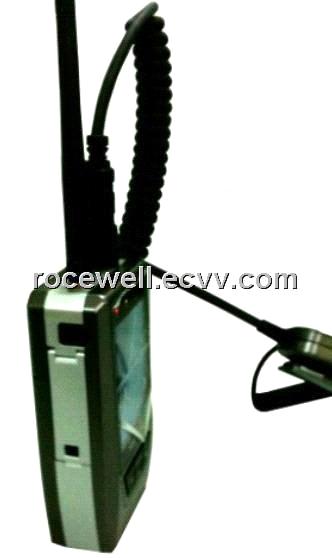

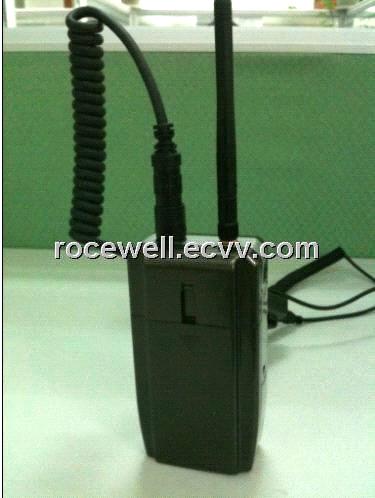

3G GPS Mini Wireless Remote Monitor Hand held Portable Track Handy Mobile DVR (RC-8001HDB)
| Supply Ability: | 50,000 Piece/Pieces per Year |
|---|---|
| Shipping: | UPS,DHL,EMS,FEDEX,TNT,ARMEX(ETC) |
| Payment Terms: | T/T, Paypal, Western Union, moneygram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 34.5X21X6.5(cm) |
Specifications
3G GPS wireless remote portable personal in hand mobile DVR
Model: RC-8001HDB
Brand: ROCEWELL
Function of GPS DVR:
I.Video compression technology:H.264 video compression technology and OggVorbis audio compression technology,high compression rate,agile deal.
II.Function of net:wireless transmit,intact TCP/IP protocol,video,audio,alarm,voice data,serial device back up.Data be transmitted by TCP/IP net.

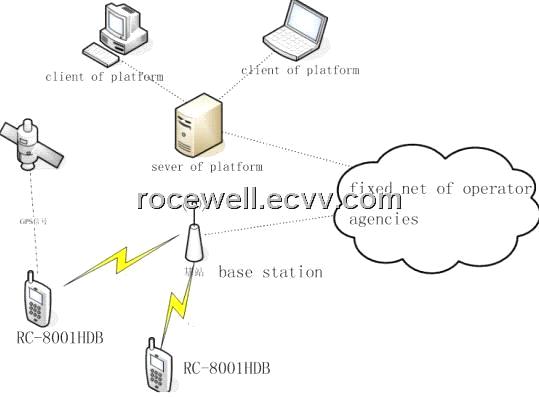

III.3G module built in,connect with centre platform to monitor.
IV.Voice talkback :two way to voice talkback.
V.Small and exquisite appearance,handy carrying .
VI.Friendly menu and easily operate.
VII.GPS module integrated,exactly position and upload to monitor centre.
VIII.Drive by line to alarm,catching shoot back up.
IX.Lithium cell built in,cell easy to change.
X.Auto change to power save mode,delay working time of cell.
XI.MiniUSB interface could be change master mode or slave mode;master mode,3G module working,could access another device(U disk,need program back up)slave mode,could access MICRO SD inside of device through PC.
Remarks:GPS function is option
Parameter:
|
model
|
RC-8001HDB
|
RC-8001HDB
|
|
Video and audio input
|
Video compression format
|
H.264
|
|
Video input
|
1CH,mini camera,PAL/NTSC auto fit 480 TVL
|
|
|
Audio compression
|
OggVorbis
|
|
|
Audio input
|
1CH,mini headset
|
|
|
Video and audio output
|
LCD
|
QVGA distribution rates
|
|
Audio output
|
1CH,earphone
|
|
|
audio output code rate
|
16kbps
|
|
|
video and audio code parameter
|
video code distribution rates
|
main bit streamVGA,QVGA; assistant bit streamQVGA ,VGA
|
|
video frame rate
|
PAL:1--25frame/second,NTSC:1--30frame/second
|
|
|
video frame rate
|
main bit stream32Kbps-2048Kbps,assistant bit stream32Kbps-1024Kbps
|
|
|
save
|
type
|
microSD(TF)card
|
|
most capacity
|
32G
|
|
|
screen parameter
|
size
|
2.8 inches
|
|
type
|
TFT
|
|
|
distribution rates
|
240*320
|
|
|
NET
|
wireless protocol
|
TD-SCDMA / EVDO / WCDMA
|
|
Working temperature
|
-10ºC--+50ºC
|
|
|
Working humidity
|
10%--90%
|
|
|
Mini USB interface
|
One,USB2.0
|
|
|
wire direct
|
Alarm,shoot button,1 mini heatset,1 mini camera
|
|
|
cell
|
7.4V/2200mAh
|
|
|
Another parameter
|
Dimension(mm)
|
117mm(high)×65mm(width)×38mm(thickness)
|
|
Net weight
|
360g(without fitting)
|
|
|
Charging time
|
3-3.5 hours
|
|
|
Working time
|
>4 hours
|
|
|
Standby time
|
>15 hours
|
Warranty Service:
- 12 months (for quality problems only)
- All products will be repaired for free if in warranty date except artifical damage.
- Preserve forever
Please contact us if you have any problem about our product.
