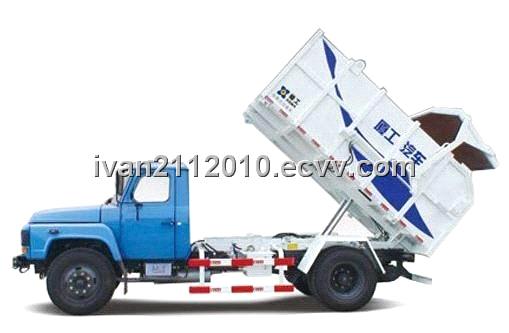

5t Dump Garbage Truck

Inquiry Now

Export Markets:	North America, South America, Southeast Asia, Africa, Mid East
Place of Origin:	Fujian in China
Packaging Details:	nude packing

Specifications

Product models			YW5090ZLJ

Dimension	Length	mm	6415
	Width	mm	2500
	Height	mm	2650
Total Mass		kg	9465
Complete Vehicle Kerb Mass		kg	5584
Loading Mass		kg	3881
Wheelbase		mm	3950
Wheeltrack(Front/Rear)		mm	1810/1800
Front/Rear Overhang		mm	1065/1590
Approach Angle / Departure Angle		(°)	34/15
Minimum Ground Clearance		mm	260
Maximum Gradeability		%	30
Lifting or Lowering Time(maximum)		s	15
Rear Door’s opening or closing Time(maximum)		s	15
Maximum Speed		km/h	85
Chassis Model			EQ1092F19DJ5
Engine Model			YC4E140-30
Power		Kw	103
