SJ-FS Series Economic Type Plastic Flat Yarn Extruder / Plastic Extruder

FOB Price:	21,000.00 - 78,000.00 USD/Set
Supply Ability:	30 Set/Sets per Quarter
Shipping:	Ningbo Sea Port
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Wooden Box

Specifications

As a professional supplier of plastic extruder, we attribute the popularity of this product to the following details:

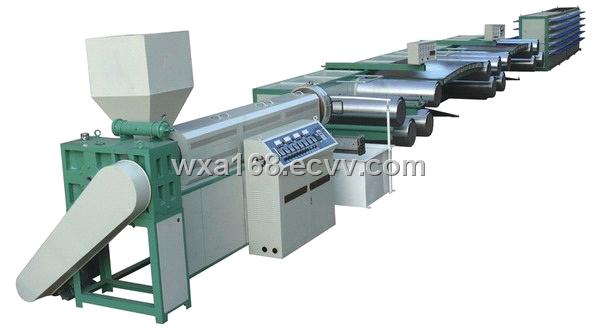

SJ-FS Series Economic Type Plastic Flat Yarn Extruder
>> Main Features & Function of Plastic Extruder:

PE PP Flat Yarn Making Line is suitable for not only new PP raw material but also PP recycling material.
Optional item: automatic feeder, belt type screen automatic changer, flat film take-up unit, etc.Plastic woven sack, Chemical bag, Foods bag, Rice bag, Sugar Bags, Leno bag, Jumbo bag, FIBC bag, Contain bag, Geo textile, Tarpaulin, Carpet backing tape, etc.

>> Major Technical Parameters

Model	SJ-FS-110/600	SJ-FS-110/800	SJ-FS-120/1000
Diameter of screw	110mm	110mm	120mm
Ratio of screw L/D	20:1	24:1	24:1
Revolution of screw	10-55r/min	10-55r/min	8-48r/min
Motor of extruder	12.5kw	22kw	30kw
Heating power of extruder	24kw	28kw	32kw
Width of die	600mm	800mm	1000mm
Diameter of roller	320mm	320mm	400mm
Number of heating board	2pcs	2pcs	2pcs
Power of heating board	15kw	15kw	20kw
Stretching ratio	4-7	4-7	4-7
Extrusion capacity	30-80kg/h	50-100kg/h	60-120kg/h
Winding linear speed	20-150m/min	20-150m/min	20-150m/min
Number of winder	100 spindles	130 spindles	160 spindles
System installed capacity	98kw	118kw	141kw
Normal operational capacity	64kw	77kw	91kw
Weight (About)	8000kg	10500kg	12000kg
Overall dimension (L×W×H)	23.50×2.50×2.50m	26.30×2.50×2.50m	27.00×2.50×2.50m

If you want to know more details about our plastic extruder, please contact us.
