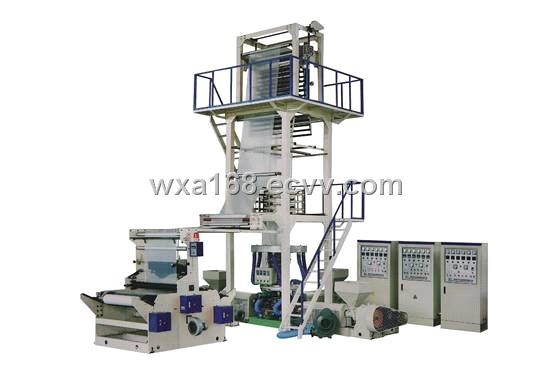

Three-Layer Film Co-Extruding Machine/Film Blowing Machine

FOB Price: 30,000.00 - 100,000.00 USD/Set
Supply Ability: 30 Set/Sets per Quarter
Shipping: Ningbo Sea Port
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Wooden Box

Specifications

Film Blowing Machine/PP Film Machine

>> Major Features & Function:

     1.Die head is layer type spiral mandrel, continuous 3600 rotation.

     2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier.

     3.Various functional parts may be installed to the lies.,such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.

   The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.

    It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink.


 >> Major Technical Parameters
Tape
3SJ-G1000
3SJ-G1200
3SJ-G1500
Screw Diameter
Φ55*2 φ60*1
Φ60*2φ65*1
Φ65*2φ70*1
L/D
28:1
Screw Speed
15--150r/min
Main Motor Power
15kw*2 18.5kw*1
18.5kw*2 22kw*1
22kw*2 30kw*1
Output(Single)
50kg/h
80kg/h
100kg/h
Range of die
Φ150 Φ200
Φ200 Φ250
Φ250 Φ300
Single side thickness of film
0.01-0.10mm
MAX. Folding Width of Film
1000mm
1200mm
1500mm
Total Power
76kw
88kw
102kw
Overall Dimension (m)
6.6*4.1*5
6.8*4.3*6
7*4.8*7.5
Weight (T)
4
5
6


Optional Equipment:

1. Auto Loader
2 Film Surface Corona Treater
3.Air Compressor
4.Mechanics Screen Changer
5.Cast alum heater
6.Air shaft
