China Grand State Group Holdings Co., Limited
China Manufacturer with main products: PP Woven Bag Making Machine, Nonwoven Bag Making Machine, Nonwoven Film Blowing Machine, Film Blowing Machine, Printing Machine, Laminting... |

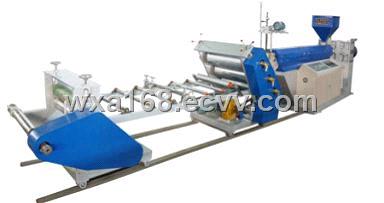

Plastic Sheet Extruder / Plastic Extruder
| FOB Price: | 5,600.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | Ningbo Sea Port |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Wooden Box |
Specifications
> > Major Features & Function of Plastic Extruder:
GW-660PC Series Plastic Sheet Extruder is designed to produce monolayer PP/PS/PE plastic sheet, which is used to make disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates and etc.
GW-660PC Series Plastic Sheet Extruder is designed to produce monolayer PP/PS/PE plastic sheet, which is used to make disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates and etc.
1. The main parts, such as screw, barrel, adopt superior 38CrMoALA material,
which is featured by high hardness, anticorrosive advantages
2. The special designed screw adopts big L/D Ratio to ensure the good plasticizing,stable extrusion and high output.
3. Screen Exchanger: It is controlled by motor and its operation is very easy(We can also adopt hydraulic style fast screen exchange with double filters according to customers’ demand).
Note: Special specification and configuration of products can be designed according to customers’ demand.
> > Major Technical Parameters
|
Model
|
GW-90
|
GW-105
|
GW-110
|
GW-120
|
|
Material Used
|
PP, PS, HIPS, PE
|
|||
|
Sheet Width
|
≤ < 690mm>
|
≤ < 690mm>
|
≤ < 690mm>
|
≤ < 690mm>
|
|
Sheet Thickness
|
0.3< -2.0mm>
|
0.3< -2.0mm>
|
0.3< -2.0mm>
|
0.3< -2.0mm>
|
|
Layer
|
1
|
1
|
1
|
1
|
|
Extrusion Capacity
|
≤ < 150Kg> /h
|
≤ < 180Kg> /h
|
≤ < 200Kg> /h
|
≤ < 260Kg> /h
|
|
Screw Dia.
|
< 90mm>
|
105
|
110
|
120
|
|
Roller Dia.
|
< 350mm>
|
< 350mm>
|
< 350mm>
|
< 350mm>
|
|
Motor Power
|
37KW
|
45KW
|
55KW
|
75KW
|
|
Overall Power
|
90KW
|
100KW
|
110 KW
|
130 KW
|
|
Overall Dimension
|
10.5*1.8*2.2
|
10.5*1.8*2.2
|
11.5*1.8*2.2
|
12.0*2.0*2.2
|
|
Weight
|
6.0T
|
6.5T
|
7.0T
|
7.5T
|
|
Power Supply
|
380V/50HZ, Tri-phase, Four-wire
|
|||
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
