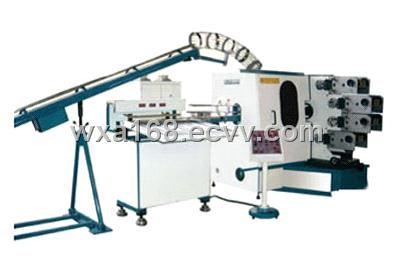

Four-Color Curved Surface Offset Printing Machine

FOB Price:	20,000.00 - 60,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	Ningbo Sea Port
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Wooden Box

Specifications

Four-Color Curved Surface Offset Printing Machine

>> Major Features & Function of Offset Press Machine:

1) It feeds cups in 45 degrees and adopts corona pretreatment, mandrel UV curing,

so printed pattern is clear and real.

2) Main motor mounted with three phase frequency conversion speed adjust,

timing belt drive, stepless speed regulation, functions steadily with no noises.

3) Convenient to adjust quantity of ink and pressure of ink distributing roller,

and the ink supply is ideal. When fix forme, locating spring can automatically tighten,

and it is easy to load or unload the forme, as well as chromatography.
4)Printing cylinder and forme roller assembled with cantilever are easy to clutch and adjust pressure.

>>Major Technical Parameters:

Printing diameter (mm)	Max.printing length (mm)	Max. printing bevel (°)	Max.printing speed (cups/hour)	Total power (kw)	Overall dimension (mm)
¢40-¢105	110	12°	10000	13.8	6600×3000×2700
