Zinc spray machine

Shipping:	Ocean shipping
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wood box

Specifications

Zinc-arc spray equipment is a high-efficiency and low energy consumption machine we develop. It uses the heat generated from electricity arc to melt metal wires, and pulverizes and cools down the molten wire with compressed air, then spray the pulverized metal particles to preprocessed surface at a high velocity to get a perfect coating.

Applications:

Anti-corrosive coating for steel structure of steel tower, bridge, water shutter, vessel and so on.

Surface repair work of work pieces such as paper-making dryer, printing roller, bent axis.

Electrode spray in capacitance and electric porcelain fields.

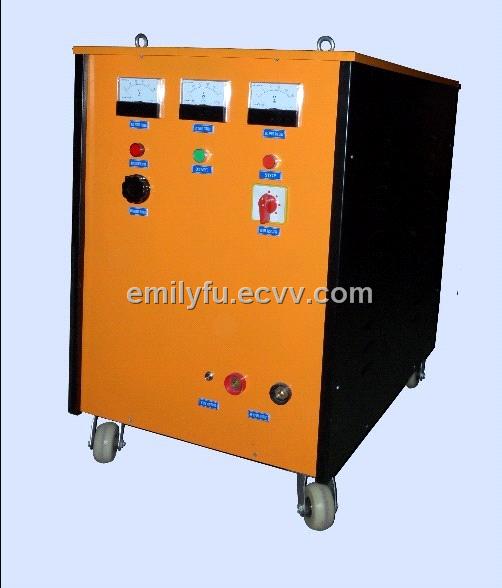

SX-400 Arc Spray Equipment consists of arc spray gun and electricity power supply, with air compressor and wire feeder as accessories. It uses integrative electro-gas switch to make operation simpler and suitable for aerial work and fieldwork in a long distance.

SX-400 is consists of spray power supply and spray gun, with air compressor, air filter and wire feeding shelf as accessories. It uses integrative electro-gas switch to make operation simpler and suitable for aerial work and fieldwork in a long distance. The velocity of pulverized particles reach 420m/s especially up to 600m/s in axis airflow, and the coating deposition rate is above 75%.

Spray material	Wire diameter	Working current	No-load volt	Air hat diameter	Maximum spray efficiency
Zinc wire	1.2-3.0	80-210	18-30	6-8	30
Al wire	1.2-3.0	120-240	25-38	6-8	9.5
Steel wire	2.0	150-200	35-40	7-8	6
High carbon steel wire	2.0	150-220	10-44	8	5.5
Stainless steel wire	2.0	150-220	10-44	8	5.5
Zn-Al, Pb-Sn alloy wire	1.2-2.0	80-110	18-28	7

Air pressure	Input power supply	Output efficiency	Output no-load volt	Power supply weight	Regulating volt
>0.5Mpa	Three phase 380V,50HZ	16KW	18-44V	178kg	0-24V

Spray gun weight	Air pressure	Air consumption	Wire feeding gravitation	Velocity regulating range	Input velocity
2.65kg	>0.5Mpa	>1.85m³/min	>8kg	stepless speed regulating	≤24V(DC)
