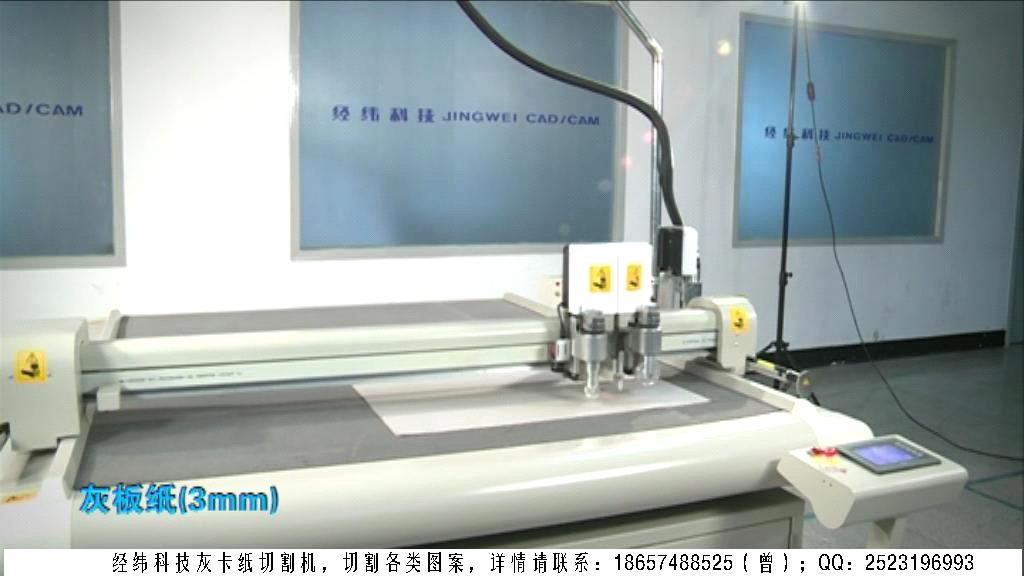

digital cutter

Inquiry Now

Related products from verified members

Multi stage cyclonic filtration system

Price:

Min. Order:
Rubber Tubing Cutter

Price:1.00-3.00 USD/tianjin,china

Min. Order:
tail lift

Price:

Min. Order:
PE Adhesive Tape Coating Machine

Price:

Min. Order:1 Set
Slew Drives for Solar Tracking System

Price:

Min. Order:10 Pieces
Internal Weld Bead Rolling Machine

Price:4000.00-5900.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

EDO-2A SERIES

●Patent product, stable performance, safety and stability, users in wide range.
●Digital panel is easily operated and LCD is clear.
●Standard 1/0 port ,HP-GL format.
●Connect to any CAD softwares, apply to apparel, shoe-making, suitcase and bag industries etc.

Model No.	EDO-1762A	EDO-1862A	EDO-1872A
Max. Speed	Up to 900mm/s
Max. Cutting Depth	2mm
Cutting Media	Kinds of cardboard, kraft paper, PVC board, fibrous cardboard, rubber sheet and marking film etc.
Pen & Blade Type	Gel-ink pen, ball pen / Special tungsten carbide blade
Media Fixture Method	Vacuum suction
Repeat Precision	≤0.1mm
Programmable Resolution	0.025 / 0.01 / 0.1 available
Interface	Serial port and parallel port
Buffer Memory	512 M
Command Mode	HP-GL compatible format
Control Panel	Liquid crystal display panel with push contacts
Transmission System	Stepper motor driver synchronous belt
Power Supply	AC 220V ±10%, 50HZ / 2 KW
Fuse	2A 30A
Working Environment	10 to 35 deg.C
Effective Cutting Area	1200mm*900 mm	1500mm*900 mm	1500mm*1200 mm
