Home >Products Catalog > DTV headend BISS Scrambler

DTV headend BISS Scrambler

Supply Ability:	2,000 Piece/Pieces per Month
Shipping:	DHL/EMS/FEDEX/TNT
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

CK-800C-C

Price:200.00-239.00 USD/Piece

Min. Order:1 Piece
Wireless Software Controlled prison Jamming Sy...

Price:

Min. Order:
Applicable to Vbpdob of ZTE 5gbbu Board Card

Price:600.00-1000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Sichuan in China
Packaging Details:	cartons

Specifications

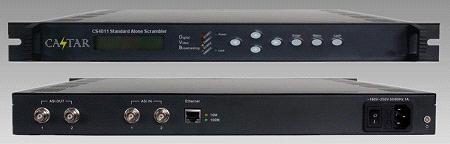

CS4011B BISS Scrambler
Outline:
CS4001B BISS scrambler aims to DVB simulcrypt scrambling on input code streams, embedded control generator, can send fixed or variable control word scrambling focus on transport stream; scrambling machine inside synchronous controller send control word and access conditions and exchange information with ECMG. Co-ordination with the CA systems, through the rational control of scrambling cycles (CP), scrambling machine aims to facilitate the proper decoder to decrypt control word, descrambling code stream.

Features:
◎ 8M bytes caches, anti-burst stream;
◎ 63 sets of programs can be scrambled, each program supports 32 elements;
◎ 2 channel inputs, real-time hot backup;
◎ Support EPG data insertion;
◎ Commonly Used DVB Scrambling system description ETR289, Commonly used Scrambling System description;
◎ DVB scramble on specified program or basic transport stream;
◎ Meet the DVB Commonly Used Scrambling Algorithm, support simulcrypt model, compatible with multiple conditional access (CA) system;
◎ Provide a comprehensive analysis of MPEG stream function;
◎ Provide TS stream PSI / SI information re-processing functions;
◎. Provide input and output ASI code stream channel protection;
◎. Support rate adaptive, PCR re-adjustment function and re-marking function;
◎ Support remote real-time monitoring of transport streams;
◎ Support automatically switching on input backup function;
◎ Package format: automatically adapt to 188/204 package format;
◎ PCR correction.

Specification

Input interface Two DVB/ ASl (one for reserve)
Output interface Two DVB/ ASl
Output bit-rate 1~54mpbs
Management Ethernet port 10/100M
General Dimension 482mm×410mm×45mm
Weight 4kg
Work temperature 0~45℃(working ),-20~80℃(storage)
Power supply AC 110V/220V±10%,50/60Hz
Power consumption 11W
To know more details, welcome to contact our salesman!
