Specifications

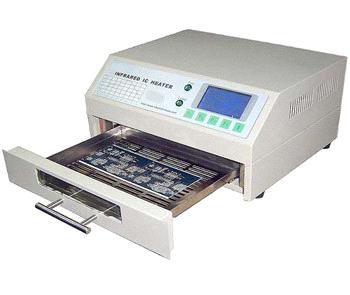

INFRARED IC HEATER AND REFLOW OVEN TA962
1 This product adopts microcomputer controller and can weld SMD, BGA and other parts. The whole welding process was performed automatically. So its operation is very easy.
2 It adopts fast infrared radiation and cyclic air heating system for more accurate and even temperature control.
3 It is designed with fuzzy temperature control technology and equipped with visualized drawer-type workbench so that the whole welding process is performed automatically under your monitoring. It can weld single-sided and double-sided PCBs and also the finest SMD components.
4 It features maintenance-free high-reliability design to bring you satisfactory and assured operation.
[Features]
1. Extra-large reflow welding zone
Its welding area available can be up to180 x 235 mm, increasing this machine’s scope of application and saving your investment.
2. More temperature curves available
There are eight different temperature curves for your selection. Both heating and forced cooling are available. The whole welding process was performed automatically. So its operation is very easy.
3. Unique temperature rise and leveling design
Fast infrared heating system with a power output of 800W plus temperature leveling fan makes your temperature more accurate and even so that it can perform the whole welding process per your preset temperature curve automatically and accurately without any need of your extra control.
4. Humanized high-tech product
Robust design, visualized operation, friendly man-machine interface, perfect temperature curve solutions. Technology-led features can be found everywhere. Light weight and compact appearance save you a lot of money. Desktop installation saves you more space. Simple operating instructions can be easily understood.
5. Various functions and options
Reflow welding, drying, warm-keeping, shaping, fast-cooling and more functions are integrated into one machine. It can weld CHIP, SOP, PLCC, QFP, BGA and parts with any kind of packs and both single-sided and double-sided PCBs. It can also perform curing, thermal-aging, PCB rework and more jobs. It is widely used in small-lot production by various enterprises, companies and institutions.
[Technical Parameter]
|
Power supply
|
AC110V/ 50Hz or AC220V /60Hz
|
|
Rated power
|
800W
|
|
Maximum Soldering Area
|
180×235 mm
|
|
Temperature Range
|
100℃-350℃
|
|
Cycle Time
|
1～8 min
|
|
Product size
|
L310 x W290 X H170mm
|
|
Box Size
|
L375 x W240 X H375mm
|
|
Weight
|
NW: 6.2kgs, GW:8kgs
|
[Packing list]
|
TA962 Main Assembly
|
1
|
|
Power Cable
|
1
|
|
5mm Fuse, 10A 250VAC
|
1
|
|
Manual on CD
|
1
|
