CNC Plasma Cutting Machine (QL-1530)

FOB Price:	1.00 - 10,000.00 USD/Set
Supply Ability:	200 Set/Sets per Month
Shipping:	by sea
Payment Terms:	T/T, more discount for larger

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywood

Specifications

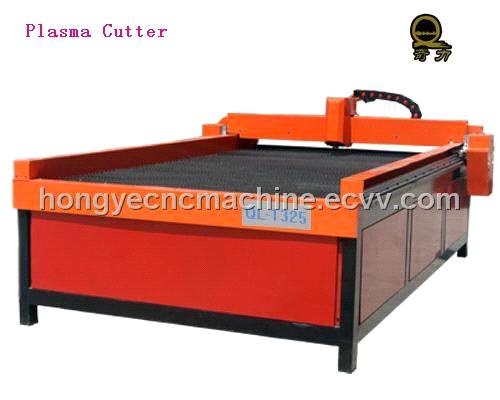

CNC Plasma Cutting Machine (QL-1530)

CNC Plasma Cutting Machine adopts well known plasma power supply and domestic cutting torch.

1.Y axis adopts double motors with double drivers. XYZ axis round rail, moving smoothly, with high accuracy. (option: square rail)

2.Light beam design, good rigidity, light weight and tiny moving inertia.

3.Excellent performance on cutting 3D illuminated letters for advertising and channel letters on metal surface board

4.Work together with other advertising machines, such as CNC router and so on, improving working efficiency

5.small cutting gap, no residua high cutting speed, high accuracy and low cost advanced CNC control system, Auto Arc, arcing success rate over 99%

Technical Parameters
Working Area	13002500mm(51.298.4 inch)
Cutting Thickness	0.5-15mm
Cutting Speed	0-8m/min
Moving Speed	0-50m/min
Working current	60A
Cutting accuracy	2mm
Power	8.5KW-10.5KW
Input Voltage	3 phase 380V
Power Frequency	50Hz
Files Transfer	USB Interface
Arc	Untouched Arc Striking Arc Pressure Adjuster
