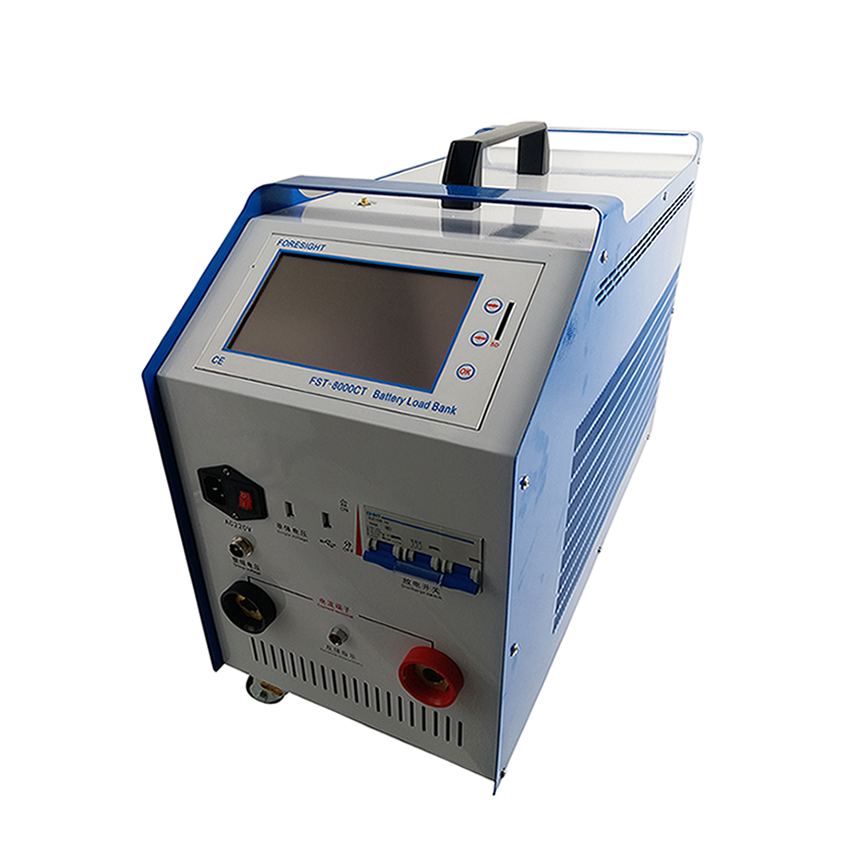

48VDC LOAD BANK Constant Power & Constant Current 0-300A & PC Monitoring for NICD & Lead Acid Battery
| Supply Ability: | 100 Unit(s) per Month |
|---|---|
| Shipping: | 7working days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shaanxi in China |

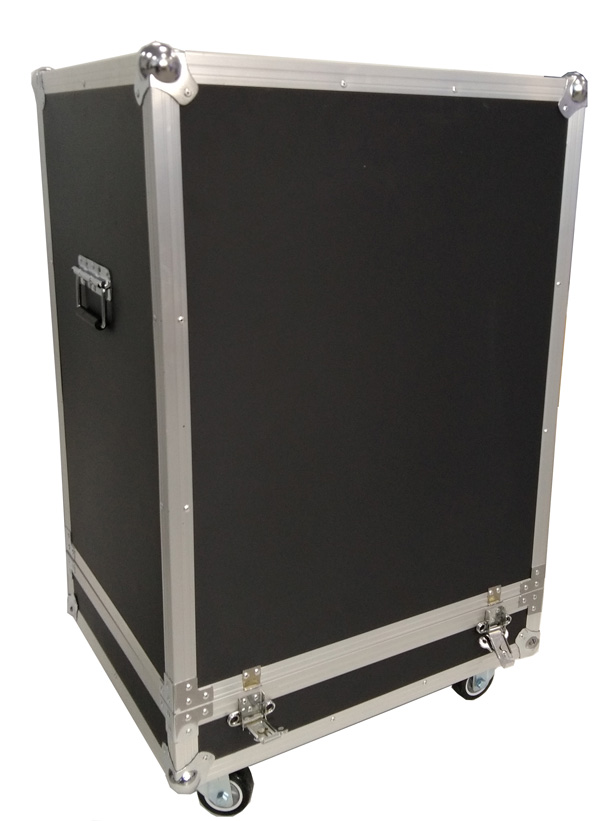

| Packaging Details: | alloy carrying case and wooden case |
Quick Details
- Brand Name: FORESIGHT
- discharge current: 0-300A
- current measurement resolution: 0.1A
- discharge voltage range: 20-60VDC
- voltage measurement resolution: 0.01V
- Model Number: FST-CT48
- String Voltage measurement range: 0-60V
- Discharge Voltage of Constance current and constant power: 20-60V
- Discharge current Range: 1-300AMP
- String Voltage Resolution: 0.01V
- Current Measurement Resolutions: .01A
- Weight: 10-15kg
- Communication port: USB Port
- data analysis: PC Software management
Specifications
|
|
Specifications |
|||||
|
Model |
48V/100A |
48V/150A |
48V/300A |
|||
|
String Voltage measurement range |
060V |
|||||
|
String Voltage Resolution |
0.01V |
|||||
|
Voltage measurement accuracy |
0.5% |
|||||
|
Cell Voltage Resolution |
0.01V |
|||||
|
Discharge current Range |
1100Amps |
1150Amps |
1-300Amps |
|||
|
|
2060V |
|||||
|
Current Measurement Resolutions |
0.1A |
|||||
|
Cell voltage measurement type |
1.2V/2V: 0-4V; 6V:0-8V; 12V: 0-15V |
|||||
|
Power Supply |
110VAC or 220VAC15% 50Hz/60Hz |
|||||
|
|
Air Cooling |
|||||
|
Communication Mode |
USB Communication port and SD Card storage |
|||||
|
Display |
7inch Touch screen |
|||||
|
High-Voltage insulation test |
Input-the enclosure:2200Vdc 1min Input-Output:2200Vdc 1min Output- the enclosure:700Vdc 1min |
|||||
|
Safety standard |
EN610950 |
|||||
|
CE Certificate |
LVD: EN61010-12010; EMC:EN61326-1:2013 |
|||||
|
Work Temperature |
-550 |
|||||
|
Storage Temperature |
-4070 |
|||||
|
Humidity |
Relative humidity 090%(402) |
|||||
|
Noise |
<60dB |
|||||
|
Dimensions of Host machine |
405x225x265mm |
405x225x265mm |
355x230x440mm |
|||
|
Dimensions of Package |
506*403*406mm |
506*403*406mm |
600x400x500mm |
|||
|
Net Weight |
<10.5Kg |
<10.5Kg |
<13Kg |
|||
|
Gross Weight |
24kg |
24kg |
34kg |
|||
