Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

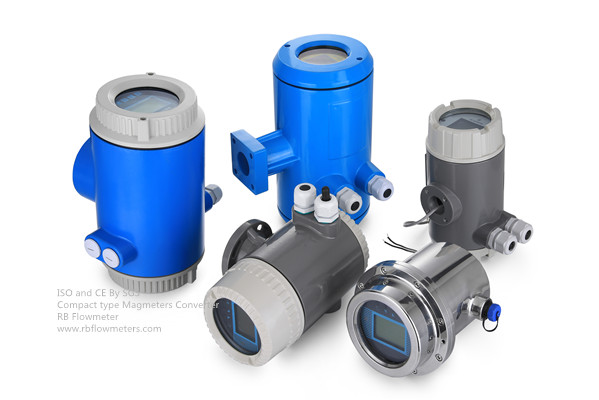

RBEFC series Electromagnetic Flow meter Converter

General Features

Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption

Implementing 16 bits MCU, providing high integration and accuracy

Full-digital processing, high noise resistance and reliable measurement

Low EMI switching power supply, providing wide mains range adaptability, high efficiency and low temperature rising

User-friendly operation interface

High definition LCD display with backlight and -20℃ - +70℃ temperature range

Forward and reverse measurement

Three independent 10-digit totalizer: forward, reverse and net totalizer, convenient for metering or billing

RS485 interface supporting up to 2km distance at 14400 bps communication

Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.

Implementing 'Rate-Of-Change Limit' technology to eliminate sharp electrical noise contained in the flow signal and stabilize the display and outputs

Totalizer remote control function, providing a contact for starting and stopping totalizing which is convenient for calibration synchronization or batch processing

System self-diagnosis function

Non-volatile memory, securing parameter settings and measurement data

Optional real-time clock, power-failure and history data logging function ,storing up to 30 days measurement records

Two versions available: remote and compact
