Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

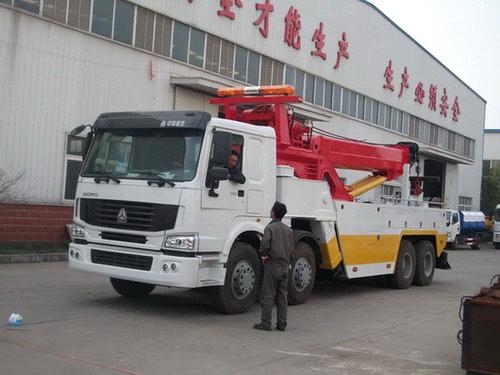

Sinotruck Howo 8*4 Heavy Duty Wrecker Tow Truck
| FOB Price: | 50,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | within 28workdays |
| Payment Terms: | T/T |
| Place of Origin: | Hubei in China |
|---|
Specifications
Sinotruck Howo 8*4 Heavy Duty Wrecker Tow Truck
Heavy Duty Tow Truck
Boom&wheel lift seperated
Dual winch& hook
Rated tow 38ton,lifting 48ton
Crane 360 rotation
Sinotruck Howo 8*4 Heavy Duty Wrecker Tow Truck
Max lifting capacity 48ton
Max pulling capacity 38ton
360º rotating crane wrecker
Both the body side can operation
Sleeper type cab , equipped with air conditioner . 10 speed transmission .
Remote control optional
One year warranty , short lead time
It is an ideal choice for police , highway , garage to tow accident vehicle .obstacle vehicle and so on .
Professional road wrecker tow truck manufacturer , supply flatbed tow truck , light duty , medium duty , heavy duty wrecker recovery truck .
The vehicle specification
|
Entire vehicle
|
Type
|
JDF5380TQZZ
|
|
|
Dimensions parameter
|
Length(mm)
|
10950
|
|
|
Wide(mm)
|
2495
|
||
|
High(mm)
|
3300/3450
|
||
|
Wheelbase(mm)
|
1800+4600+1350/1800+4575+1400/1800+4600+1400
|
||
|
Mass parameter
|
Max mass(kg)
|
38000
|
|
|
Total mass(kg)
|
25020
|
||
|
Chassis
|
Type
|
ZZ1317N4667C
|
|
|
Engine
|
Type
|
WD615.95E
|
|
|
Power(kW)
|
247
|
||
|
Size of tire
|
11.00-20 / 12.00-20
|
||
|
Specialized device
|
Lifting organ
|
Max lifting capacity(kg)(Choosing)
|
48000
|
|
Max lifting high(mm)(Choosing)
|
12000
|
||
|
Lift-hoist telescope length(mm)(Choosing)
|
6000
|
||
|
Winch rating pulling capacity(kg)
|
25000
|
||
|
Length of steel(m)
|
60
|
||
|
Hoisting organ
|
Max under-hoist useful length(mm)
|
3200
|
|
|
Rating under-hoisting capacity(kg)
|
12850
|
||
|
Fully extended max under-hoisting capacity(kg)
|
8000
|
||
|
Rating under-pulling capacity(kg)
|
38000
|
||
