Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

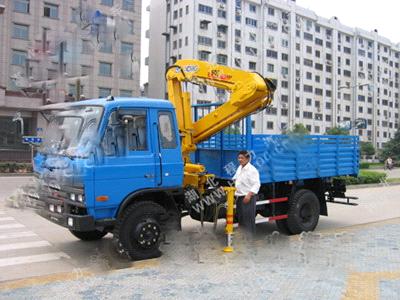

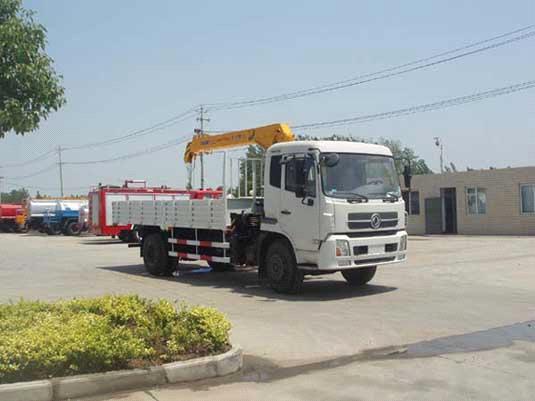

6.3T Articulated Boom Crane Truck
|
Vehicle name
|
6.3T DongFeng Articulated Boom Crane Truck
|
||
|
Engine model
|
B190 33
|
Engine make
|
DongFeng Cummins
|
|
Displacment(ml)
|
5900
|
Horsepower(kw)
|
140
|
|
Overall dimensions(L*W*H)(mm)
|
9000×2500×3350
|
Cargo dimension(L*W*H)(mm)
|
5800×2294×550
|
|
G.V.W(Kg)
|
16000
|
|
|
|
Curb weight(kg)
|
8350
|
Payload weight(kg)
|
7455
|
|
Approach/Departure angel
|
20/11
|
Front/Rear Suspension
|
1430/2570
|
|
Wheelbase(mm)
|
5000/4700
|
Axle load
|
6000/10000
|
|
Axle number
|
2
|
Leaf spring
|
7/9+6,8/10+8
|
|
Tire number
|
6
|
Tire size
|
9.00-20,10.00-20
|
|
Front track
|
1880
|
Rear track
|
1800/1860
|
|
Crane parameter
|
|||
|
Max Lifting Capacity
|
6300kg
|
||
|
Max Lifting Moment
|
13.23T.M
|
||
|
Recommend Powe
|
18KW
|
||
|
Max Oil Flow of Hydraulic System
|
25L/Min
|
||
|
Rated Pressure of Hydraulic System
|
28MPa
|
||
|
Oil Tank Capacity
|
90L
|
||
|
Rotation Angle
|
All Rotation
|
||
|
Crane Weight
|
2115/2226KG
|
||
|
Installation Space
|
1050mm
|
||
