Qingdao Welvo Import & Export Co., Ltd.
China Manufacturer with main products: Building Machinery, Engineering Machinery, Loader, Excvavtor, Forklift, Road Roller, Machinery |

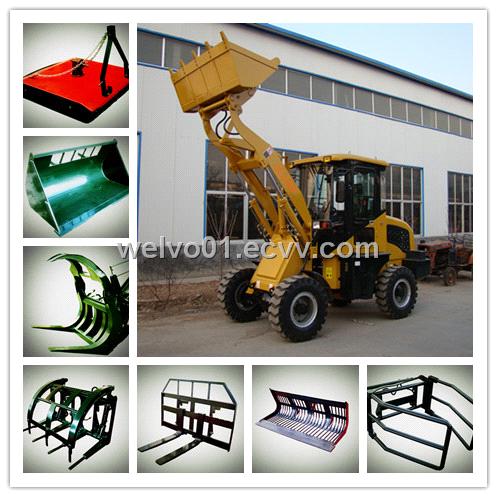

mini wheel loader (ZL12F) with ce
| FOB Price: | /Set |
|---|---|
| Supply Ability: | 3,000 Set/Sets per Year |
| Shipping: | within 20 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | 1set in one 20GP ,3sets in one 40HQ |
Specifications
Features
1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieve short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easyadjustment. The wheel loader offers the driver a comfortable drive and wide view.
1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieve short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easyadjustment. The wheel loader offers the driver a comfortable drive and wide view.
Technical Specifications
|
Main Technical Parameter of ZL12F
|
|
| Item | Parameter |
| Rated load (kg) | 1200 |
| Bucket capacity (m3) | 0.6 |
| Wheel tread (mm) | 1400 |
| Wheel base (mm) | 2005 |
| Min turning radius (mm) | 4500 |
| Min ground clearance (mm) | 260 |
| Dumping height (mm) | 2650 |
| Corresponding dumping reach (mm) | 1020 |
| Lifting time (s) | 4 |
| Hydraulic cycle time (s) | 8.5 |
| Maximum excavating force (KN) | 36 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 3100 |
| Overall dimensions (mm) (Length*width*height) | 4800*1730*2720 |
| Engine model | Changchai4L68 |
| Rated power of engine (kw) | 37 |
| Rated speed of engine (rpm) | 2200 |
