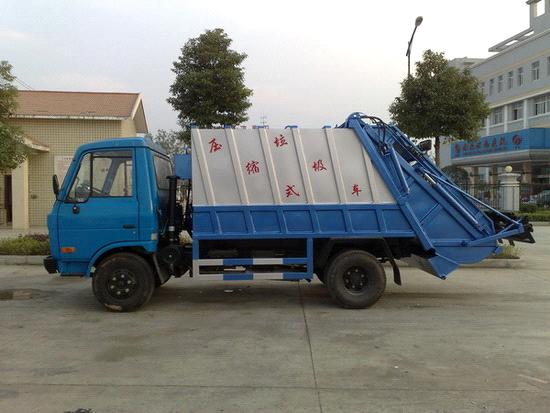

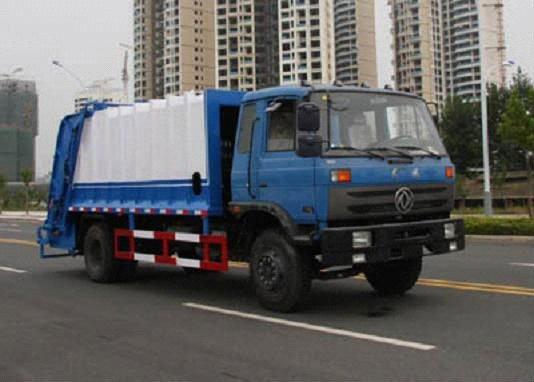

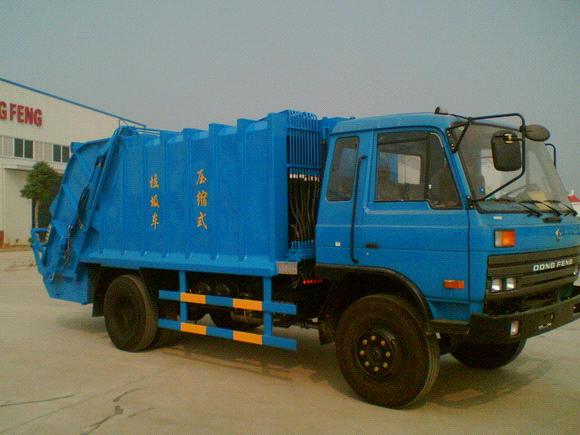

Super Duty Compression Garbage Truck HLQ5161ZYSE

FOB Price:	20,000.00 - 40,000.00 USD/Set
Supply Ability:	8,000 Set/Sets per Year
Shipping:	within 25workdays
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	South America, Southeast Asia, Africa, Oceania, Mid East
Place of Origin:	Hubei in China

Specifications

Super Duty Compression Garbage Truck HLQ5161ZYSE Details
Hydraulic compression
Compression ratio, the load volume, automate
hanging barrel to enhance flip device
Super Duty Hydrualic Garbage Truck HLQ5161ZYSE

Vehicle No.	HLQ5161ZYSE compression garbage truck
Company	Hubei heli
Dimension(mm)	8400× 2480× 3050	Total mass(Kg)	15600
Van(mm)	× ×	Rated mass(Kg)	6800
Approach/Departure	23/10	Unladen mass(Kg)	8605
Front/Back overhang(mm)	1250/2650	Max. Speed(km/h)	80
Chassis	EQ5160GKJ
ISDe185 30 YC6J180-31 ISDe180 30 YC6J180-33 B170 33 B190 33	Dongfeng cummins engine Co., Ltd Guangxi yuchai machine Co., Ltd Dongfeng cummins engine Co., Ltd Guangxi yuchai machine Co., Ltd Dongfeng cummins engine Co., Ltd Dongfeng cummins engine Co., Ltd	6700 6500 4500 6500 5900 5900	136 132 132 132 125 140
Fuel	diesel	Emission standard	GB3847-2005, GB17691-2005
Axle	2	Tire	6
Wheelbase	4500,4700,4950	Specification	9.00-20,9.00R20,10.00-20,10.00R20
Axle load	5700/9900	Front axle	1940
Spring	9/10+8	Back axle	1860
Other	Only adapt chassis with wheelbase of 4500mm
