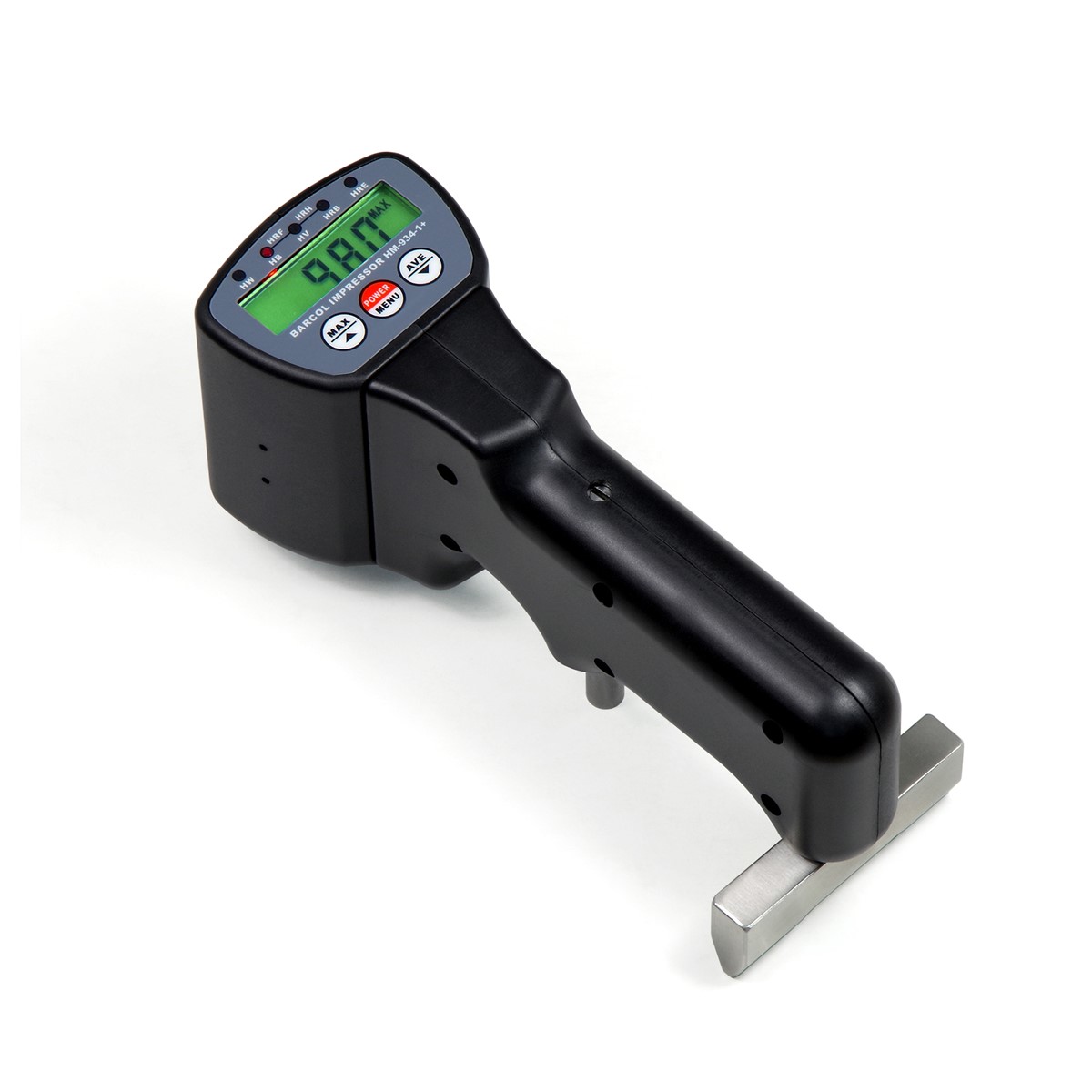

Barcol Impressor HM-934-1+ (Aliminium Hardness, Data Memory, Average Value Calculation)

Specifications

Applications:

It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry.

* A digital indentation hardness tester, is the latest design and development of our company.

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.

* No need to  be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as  Brinell Hardness (HB), Vickers Hardness (HV), Webster  Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

* Provide Bluetooth data output choice.

 Model : MH-934-1+

  Range : 0~100Hba, Amount to 25~135HBW

  Resolution: 0.1HBa

  Indication Error : 81~88HBa ±1HBa

  42~48HBa ±2Hba

  Repeatability Error: 81~88HBa ±1.5HBa

  42~48HBa ±2.5HBa

Brinell Hardness   √

  Vickers Hardness   √

  Webster Hardness   √

  Rockwell hardness   √

  Maximum Hold   √

  Average Calculation   √

  Operating Condition : Temperature: 0~50°C

  Humidity: <80%RH

  Power Supply : 2 x 1.5 V AAA (UM-4) Battery

  Weight: 390g (Not Including Batteries)

Standard Accessories :

 1. Main Unit

 2. 2 Pins

 3. 2 Standard Blocks

 4. Pin Length Calibration Block

 5. Screw Driver

 6. Spanner

 7. Carrying Case

 8. Operation Manual

Optional Accessories:

 1. Bluetooth data out put with software
