Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

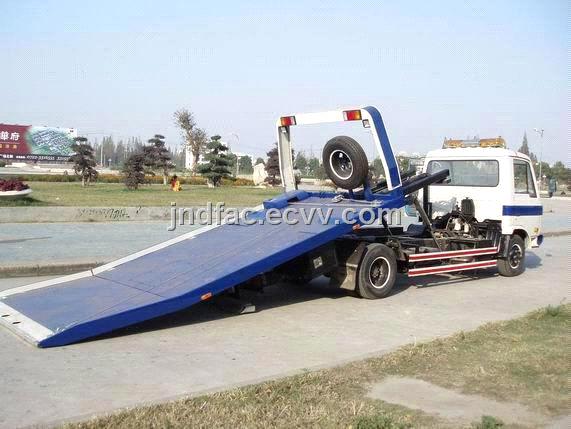

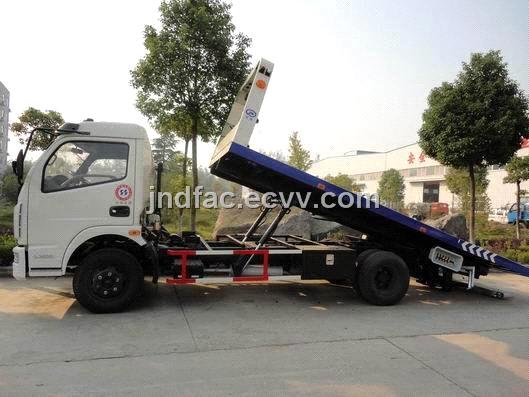

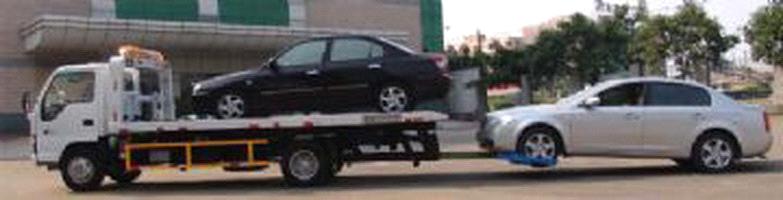

JDF5060TQZB Hydraulic Elevated Platform Wrecker Truck
| FOB Price: | 20,000.00 - 38,000.00 USD/Set |
|---|---|
| Supply Ability: | 8,000 Set/Sets per Year |
| Shipping: | within 25workdays |
| Payment Terms: | T/T |
| Place of Origin: | Hunan in China |
|---|
Specifications
Passed ISO9001 and CCC
2 car carrier rescue truck
Hydraulic Bed Wrecker Truck
2 car carrier rescue truck
Hydraulic Bed Wrecker Truck
|
Vehicle No.
|
JDF5060TQZB hydraulic elevated platform wrecker truck |
Announcement Batch
|
|
|
Manufacture
|
Hubei Jiangnan Special Automobile Co.,LTD
|
||
|
Dimension(mm)
|
7390*2320* 2580
|
Total Mass(Kg)
|
6495
|
|
Approach/dDeparture Angle
|
22/12
|
Unladen Mass(Kg)
|
5100
|
|
Front/Back Overhang(mm)
|
1120/2470
|
Max. Speed(Km/h)
|
95
|
|
Chassis No.
|
BJ1069VCJEA-D
|
|
|
|
Engine No.
|
Manufacture
|
Displacement
|
Power
|
|
CA4DC2-12E3
|
Faw car dalian diesel engine branch
|
3168
|
88
|
|
CY4012-C3C
|
Dongfeng chaoyang disel engine Co.,LTD
|
3856
|
88
|
|
YZ4DB1-30
|
Weichai power yangzgou diesel engine company
|
4087
|
95
|
|
YZ4DA1-30
|
Weichai power yangzgou diesel engine company
|
3660
|
95
|
|
Phaser135Ti-S30
|
Platinum,ray walter dynamic tianjin Co.,LTD
|
4000
|
101
|
|
Fuel
|
diesel
|
Emission Standard
|
GB17691-2005,GB3847-2005 Euro
|
|
Axle
|
2
|
Tire
|
6
|
|
Wheelbase
|
3800
|
Specification
|
7.50-16,7.50R16,8.25-16,8.25R16
|
|
Axle load
|
2595/3900
|
Front Axle
|
1685
|
|
Brand
|
9/11+7
|
Back Axle
|
1600
|
|
Other
|
Lifting mass:1200Kg ,cab is decided by the chassis chose,only adopt CY4102-C3C,CA4DC2-12E3engine
|
||
wrecker refited from Foton chassis ,the vehicle appearance is esthetic ,durable in use , Tow and hang and connect with the body, the function is powerful ,i
s the best style of removing obstacles on the road and garage.
Production street sprinkler.Tank truck.Garbage truck.Sewage Dredging Truck.High pressure washer truck.
Chemical liquid truck.Powder material truck (bulk cement truck ).Crane with automobile.Hydraulic aerial cage.Street wrecker.F
ire truck.Refrigerated van.Kept temperature van.Van truck.Sweep street truck.Concrete mix truck.Electric mobile machinery automobile.Dump truck.Semi-trailer truck and so on .
If you need please give me a E-mail ,thanks
|
Flat
organiztion
|
Lengthxwidth(mm):5330x2330 flat maxinum bearing quality(kg):3000
Flat stroke (mm):2680 Rated traction winch(kg):4000
Flat mini inclination angle(o):8 the length of wire rope(m):25 |
|
Lifting
mechanism
|
Effective length(mm):1300 full extend max lift quality(kg):800
Rated lifting quality(kg):1200 the rated supporting lead quality(kg):6495 |
Advantages of factory
Founded in 1996, and over 10years' exporting experience
Professional staff , high working efficiency and responsible
In cooperation with powerful and reliable shipping service when CIF terms
international certificate: ISO9001 and CCC
lowest price best quality and sevies
manufacture direct sale ,Professional technology
