Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

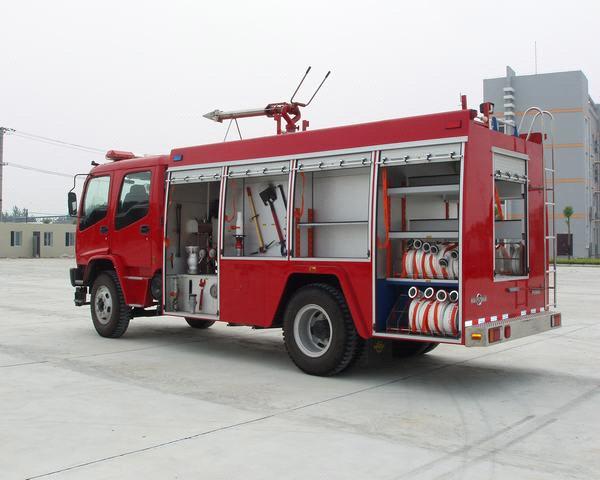

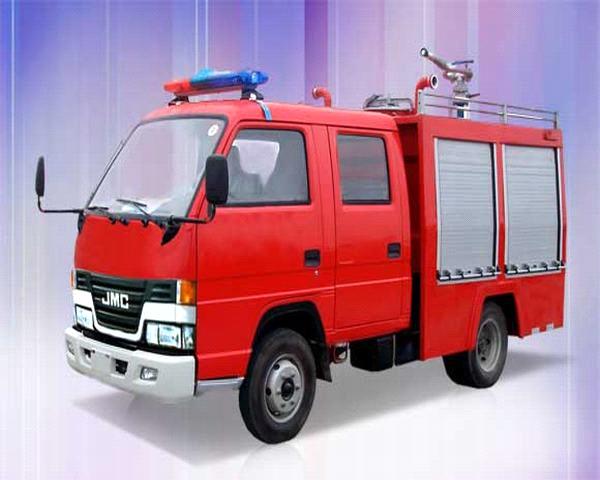

2000L JMC Fire Fighting Truck
| FOB Price: | 25,000.00 - 45,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | 10 days |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waxed, etc |
Specifications
2000L JMC Fire Fighting Truck
| Entire Vehicle | Main Parameter of Fire Fighter Truck | Total Weight(kg) | 5835 | ||
| Payload weight (Kg) | 2035 | ||||
| Kerb Weight(kg) | 3500 | ||||
| Overall Dimension (L * W * H) (mm) | 6140×1885×2660 | ||||
| Chassis | Chassis Mode | JX1060TSG23 | |||
| Engine Parameter | Mode | JX493ZLQ3A | |||
| Power(kw) | 75 | ||||
| Displacemint (ml) | 2771 | ||||
| Fuel Type | Diesel | ||||
| Functional Parameter | Max Speed (km/h) | 95 | F/R Tread(mm) | / | |
| Leaf Spring | 7/5+5 | F/R Overhang (mm) | 1015/1765 | ||
| Axle Load(kg) | 1940/3895 | Approach/Departure angle(°) | 27/13 | ||
| Tire Size | 7.00R16LT | Number of Tires | 6 | ||
| Wheelbase (mm) | 3360 | Number of Axles | 2 | ||
| Specialized Device | Tank Parameter | Water Tank | Capacity:1.5-3t | ||

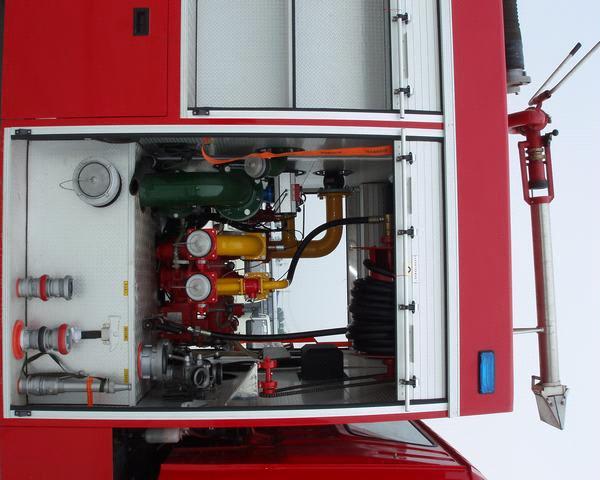

| Special Parameter | Fire Pump | CB10/20, Flowing Rate: 20L/S | |||

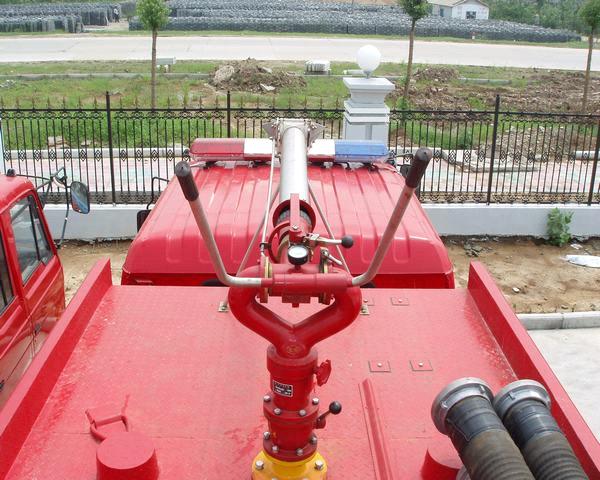

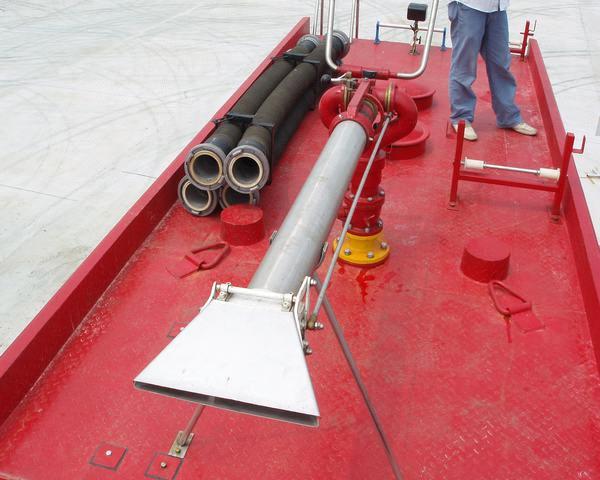

| Fire Monitor | PS20, Flowing Rate: 00L/S/0.4MPa, Range: ≥48m | ||||
Remarks:
The above information is just for your reference. We can manufacture the truck according to your specific requirements.
Our company produce light, medium and heavy fire truck including: water, foam, dry powder, the dry powder of carbon dioxide, multi-functional lighting, emergency rescue, front-tractor-rear-crane, the fire command vehicles, etc. With 2-15T volume, it's widely used for public security, fire brigade, large-scale industrial and mining enterprises, petroleum, chemical industry, metallurgy, forest fire prevention, airports, urban construction, sanitation and other fields, be able to fully meet the needs of different areas.
And if any detailed information needed, pls feel free to contact Ms Jessie Jin!
