Shenzhen RDM Tag Master Co., Ltd.
China Manufacturer with main products: RFID Products, RFID Reader/Writer, RFID Reader/Writer Module, Android RFID Tablet PC |

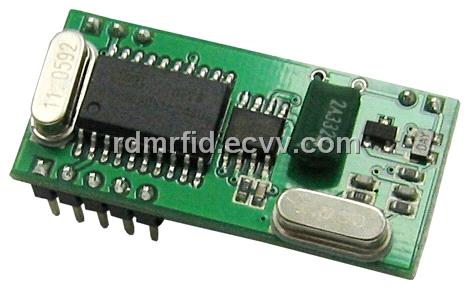

RDM630 125KHz RFID reader module RS232/RS485/TTL
| FOB Price: | 5.00 - 15.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Month |
| Shipping: | By express or ship, within 15days, FOB Shenzhen |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Neutral carton |
Specifications
RDM630 Pin Definition:
|
1.PIN Defined(Weigand interface)
|
2.PIN Defined (RS232 interface, TTL electrical level)
|
||
|
P1-PIN1
|
NC
|
P1-PIN1
|
NC
|
|
PIN2
|
DATA1
|
PIN2
|
RXD
|
|
PIN3
|
DATA0
|
PIN3
|
TXD
|
|
PIN4
|
GND
|
PIN4
|
GND
|
|
PIN5
|
+5V(DC)
|
PIN5
|
+5V(DC)
|
|
P2-PIN1
|
ANT1
|
P2-PIN1
|
ANT1
|
|
PIN2
|
ANT2
|
PIN2
|
ANT2
|
|
P3-PIN1
|
LED
|
P3-PIN1
|
LED
|
|
PIN2
|
+5V(DC)
|
PIN2
|
+5V(DC)
|
|
PIN3
|
GND
|
PIN3
|
GND
|
Parameter:
|
Frequency
|
125KHz
|
|
Baudrate
|
9600(TTL electric level, RS232 format)
|
|
Interface
|
Weigang26 or TTL electric level, RS232 format
|
|
Power
|
DC 5V(±5%)
|
|
Current
|
< 50mA
|
|
Read range
|
＞50mm(depends on the tags)
|
