2.4G, zigbee module , TTL-SZ05-STD-SMA for smart home

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

SPI UART Camera Module

Price:18.00-25.00 USD/Piece

Min. Order:10 Pieces
1/3 Sony CCD Camera Board

Price:14.00-16.00 USD/Piece

Min. Order:30 Pieces
Colorfull of LED Number Module 7 Segments for O...

Price:49.00 USD/Piece

Min. Order:50 Pieces
OEM Medical NIBP Module for Vital Signs Monitor...

Price:50.00 USD/Piece

Min. Order:100 Pieces
IC Tube Shipping Tubes Integrated Circuits

Price:0.10 USD/Piece

Min. Order:5000 Pieces

Product Details

Export Markets:	Southeast Asia, Africa, Oceania
Place of Origin:	Shanghai in China

Specifications

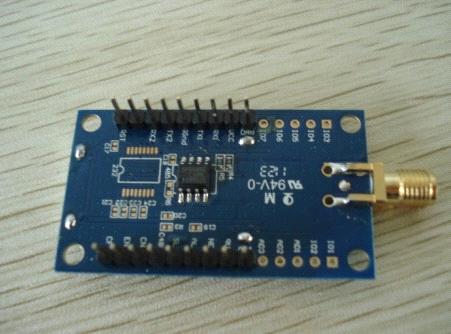

Shuncom SZ05- STD-SMA-TTL the embedded wireless serial communication module, using the ZIGBEE wireless technical, is compliance with the industrial standards. It has advantages of long communication distance, strong anti-jamming, flexible network to make sure transparent data transmission among many devices with self-organizing star, line and mesh network topology.

Wireless network

Transmission distance: 200m at sight

Network topology: Star, tree, link and mesh

Maximal data packet: 100 bytes

Node type: coordinator, router or end device (can be set )

Data interface

Data interface: TTL

Serial Signal: TxD , RxD

Baud rate: 1200~115200bps (optional)

Serial parity: None, Even, Odd

Data bit: 7 or 8

Parity bit: 1

Transceiver:

Modulation model: DSSS Direct Spread Spectrum

Frequency range: 2. 405GHz~2.480GHz

Wireless channels: 16

Receiver sensitivity: -92dbm

Transmit power output: 3dBm

Antenna: SMA

Conflict prevention: CSMA-CA and CSMA-CA of GTS

Power supply

Power supply: DC 5V

Peak current: 50mA

Average current: 48mA

Sleep current: 5uA

Size: 4.8cm*2.7cm (length*width)

Applications:

Building control

Wireless sensors network

Wireless industrial monitoring and control

Wireless intelligent traffic light control

Wireless farming control

Environmental monitoring

Smart home
